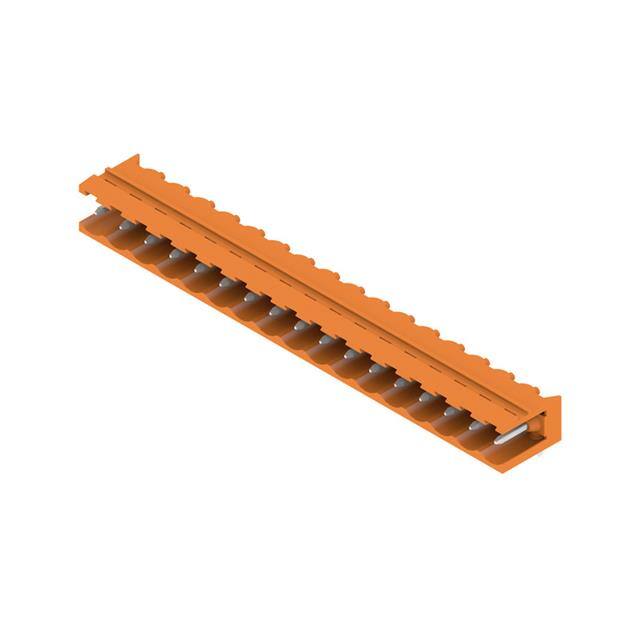

1756040000
Or copy the link below:
- Mfr.Part #
- 1756040000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 14POS 90DEG 3.5MM
- Stock
- 29,456
- In Stock ：
- 29,456
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Mounting Type :
- Through Hole
- Series :
- Omnimate S2L
- Termination Style :
- Solder
- Packaging :
- Bulk
- Voltage :
- 150V
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- DIN Conformance :
- No
- JESD-609 Code :
- e4
- MIL Conformance :
- No
- Number of Rows :
- 2
- Ingress Protection :
- IP10
- Lead Free :
- Lead Free
- Number of Positions :
- 14
- Mixed Contacts :
- No
- Contact Material :
- COPPER ALLOY
- Header Orientation :
- 90°, Right Angle
- Mount :
- Through Hole
- Insulation Resistance :
- 1MOhm
- IEC Conformance :
- No
- Contact Mating Finish :
- Gold
- Positions Per Level :
- 7
- Total Number of Contacts :
- 14
- Flammability Rating :
- UL94 V-0
- Color :
- Orange
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Mating and Mounting Flange
- Operating Temperature :
- -50°C~100°C
- Contact Tail Length :
- 0.138 3.50mm
- Radiation Hardening :
- No
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Current :
- 7A
- Pitch :
- 0.138 3.50mm
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Number of Levels :
- 2
- Pbfree Code :
- yes
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.413 10.49mm
- Current - IEC :
- 10A
- Option :
- GENERAL PURPOSE
- Voltage - IEC :
- 250V
- Datasheets
- 1756040000
Bulk 0.138 3.50mm Orange 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate S2L Polybutylene Terephthalate (PBT) Gold Copper Alloy
1756040000 Overview
There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Omnimate S2L belongs to the Omnimate S2L Series.In many ways, it is more powerful due to its Mating and Mounting Flange feature.There is a Through Hole mount on the part.This device operates at a temperature of -50°C~100°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
1756040000 Features
Omnimate S2L series
1756040000 Applications
There are a lot of Weidmüller
1756040000 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
