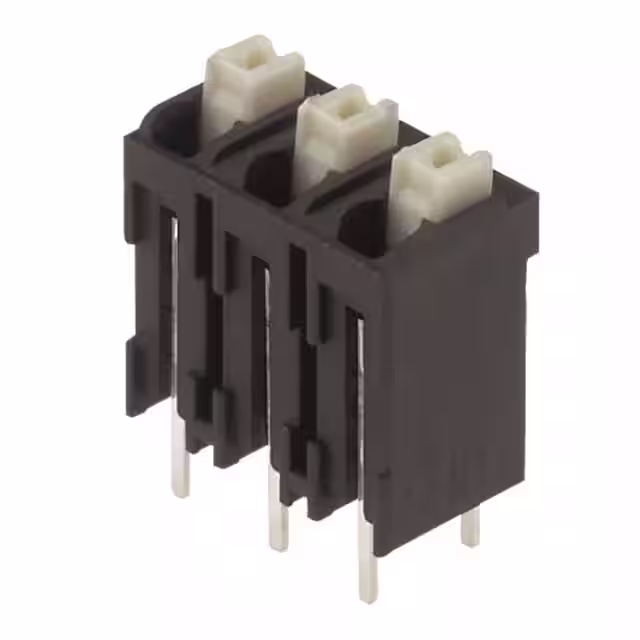

1876080000

Manufacturer :

Weidmuller

Product Category :

Wire to Board

Packaging :

Tape and Reel (TR)

Termination :

Screwless

Wire Gauge (Min) :

16 AWG

Radiation Hardening :

No

HTS Code :

8536.69.40.40

Current Rating :

10A

Fastening Method :

Push-On

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Factory Lead Time :

12 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

GLASS FILLED LCP, 94V-0

Published :

2011

Mount :

Through Hole

Pitch :

0.197 5.00mm

Hole Diameter :

1.1 mm

Number of Decks :

1

RoHS Status :

RoHS Compliant

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Wire Termination :

Screwless - Push Button Clamp

Contact Material - Plating :

Copper Alloy - Tin Plated

Orientation :

Straight

Operating Temperature :

-50°C~120°C

Wire Gauge (Max) :

24 AWG

Number of Levels :

1

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Contact Plating :

Tin

Number of Ways :

7

Number of Contacts :

7

ECCN Code :

EAR99

Current :

12A

Series :

Omnimate LSF-SMT

Wire Gauge :

16-24 AWG

Voltage - Rated :

300V

Mating Orientation :

Vertical with Board

Stripping Length :

8mm

Number of Rows :

1

Color :

Black

Approval Agency :

CSA, cURus

Safety Approval :

UL; VDE; CSA
