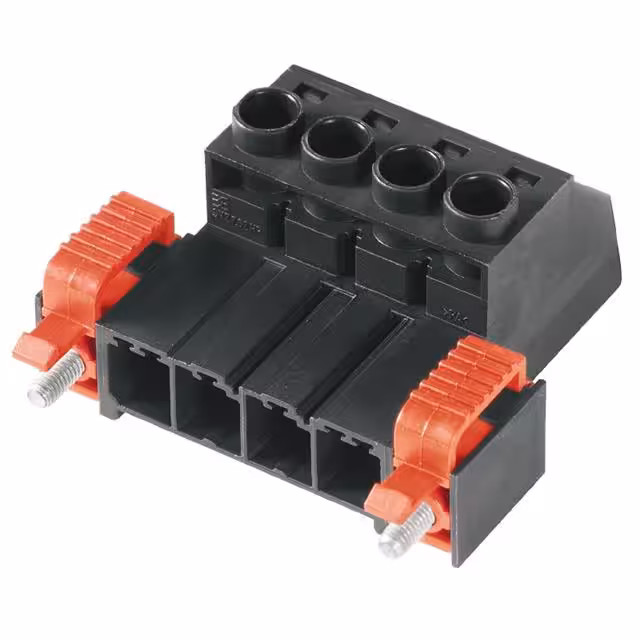

1951000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Packaging :

Bulk

Material Flammability Rating :

UL94 V-0

Stripping Length :

12mm

Mounting Type :

Free Hanging (In-Line)

Color :

Black

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Type :

Plug, Blade Pins

Operating Temperature :

-50°C~125°C

Voltage - UL :

600V

Insulation Material :

Nylon

Insulation Height :

0.909 23.09mm

Number of Positions :

3

Ingress Protection :

IP20

Number of Ways :

3

Wire Cross Section :

6 mm2

Feature :

Latch Lock, Mating Flange

Number of Decks :

1

Additional Feature :

STANDARD: UL 94V-0

RoHS Status :

RoHS Compliant

Current Rating :

41A

Voltage - Rated :

600V

Pitch :

0.300 7.62mm

Plug Wire Entry :

180°

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Safety Approval :

UL; CSA

Wire Gauge or Range - AWG :

8-24 AWG

Approval Agency :

CSA, cURus

Number of Rows :

1

Current - UL :

42A

Series :

Omnimate SV

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

ECCN Code :

EAR99

Contact Material :

COPPER ALLOY

Number of Levels :

1

Factory Lead Time :

14 Weeks

Contact Mating Finish :

Tin

Voltage - IEC :

1kV

Screw Size :

M3

Wire Gauge or Range - mm² :

0.2-6mm2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0
