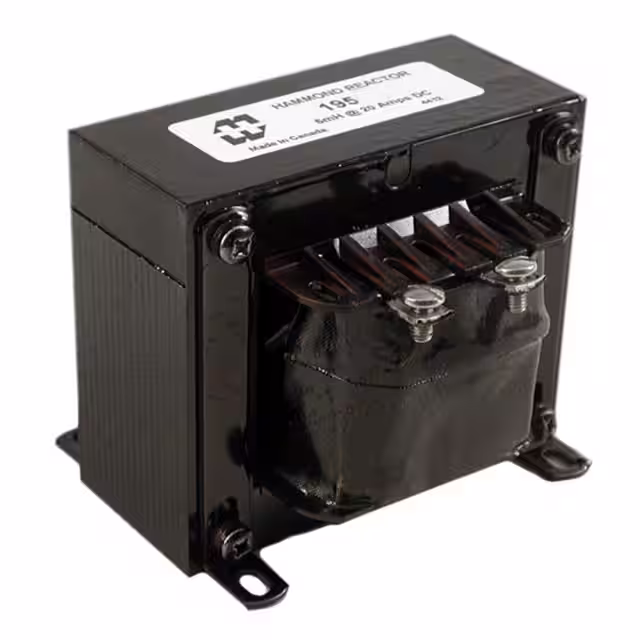

195E100

Manufacturer :

Hammond Manufacturing

Product Category :

Fixed Inductors

Ratings :

--

Operating Temperature :

--

Weight :

88.000095kg

DC Resistance (DCR) :

6 mOhm

Inductance-Nom (L) :

2500 µH

Packaging :

Bulk

Shape/Size Description :

RECTANGULAR PACKAGE

Height :

190.5mm

Inductor Application :

HIGH VOLTAGE CHOKE

Number of Terminations :

2

ECCN Code :

EAR99

Shielding :

Unshielded

Number of Pins :

4

Inductance :

2.5 mH

Supplier Device Package :

--

Current - Saturation :

--

Mount :

Chassis Mount

Width :

247.65mm

Number of Functions :

1

DC Resistance (DCR) - Parallel :

6mOhm

Q @ Freq :

--

Type :

--

Frequency - Self Resonant :

--

Mounting Type :

Chassis Mount

Size / Dimension :

9.000 L x 9.750 W (228.60mm x 247.65mm)

Series :

195

Max DC Current :

100A

Terminal Shape :

Screw

Material - Core :

--

Length :

228.6mm

Tolerance :

15%

RoHS Status :

RoHS Compliant

Inductor Type :

GENERAL PURPOSE INDUCTOR

Height - Seated (Max) :

7.500 (190.50mm)

Package / Case :

Nonstandard

Current Rating :

100A

Inductance Tolerance :

15%
