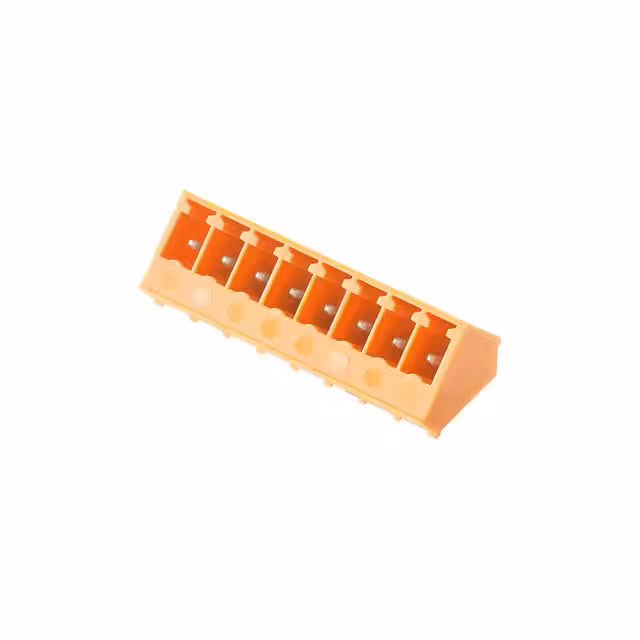

1976020000
Or copy the link below:
- Mfr.Part #
- 1976020000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 3.81MM
- Stock
- 42,515
- In Stock ：
- 42,515
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Pitch :
- 0.150 3.81mm
- Voltage - IEC :
- 320V
- Number of Positions :
- 3
- Contact Mating Finish :
- Tin
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Decks :
- 1
- Series :
- Omnimate SC
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Header Orientation :
- 135°
- Current - UL :
- 10A
- Number of Rows :
- 1
- Ingress Protection :
- IP20
- Operating Temperature :
- -50°C~120°C
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.433 11.00mm
- Voltage - UL :
- 300V
- Packaging :
- Bulk
- Contact Material :
- COPPER ALLOY
- Safety Approval :
- UL; CSA
- Contact Tail Length :
- 0.126 3.20mm
- Factory Lead Time :
- 12 Weeks
- Number of Levels :
- 1
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Ways :
- 3
- Additional Feature :
- STANDARD: UL 94V-0
- Current - IEC :
- 17.5A
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Termination Style :
- Solder
- Color :
- Green
- Datasheets
- 1976020000
Bulk 0.150 3.81mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SC Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1976020000 Overview
Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Omnimate SC Series, it can be found in this category.There are also other features such as STANDARD: UL 94V-0, to name only a few.The device is operating at -50°C~120°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
1976020000 Features
Omnimate SC series
1976020000 Applications
There are a lot of Weidmüller
1976020000 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
