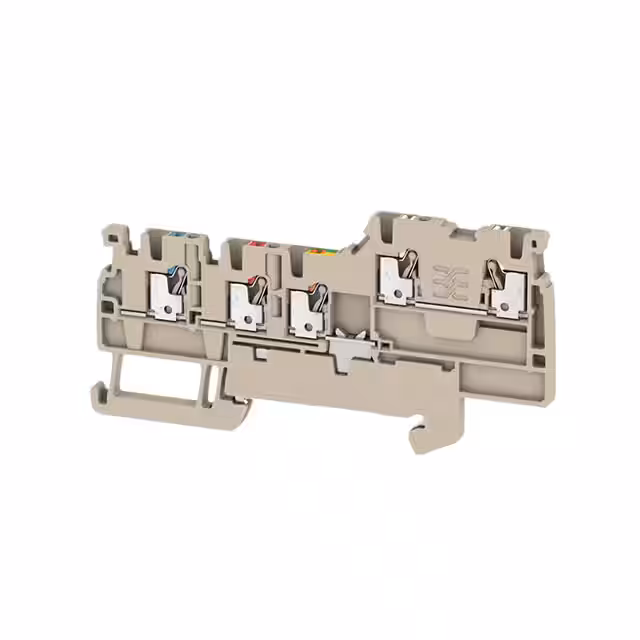

1992230000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Depth :

45

Termination Method :

Push In

AWG (min.) :

26

Connectable conductor cross section multi-wired :

0.5 - 1.5

Connection :

Pull spring

Clamp width :

3.5mm

Maximum Operating Temperature :

+130°C

Reach Compliance Code :

Compliant

Nominal voltage :

250V

Cross section (inflexible) (max.) :

1.5mm²

Features :

+ PG connector

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Nominal current :

13.5A

Connectable conductor cross section solid-core :

0.5 - 1.5

Connections :

4

Industrial packaging :

yes

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 1.5

Type :

AIO22 1.5 SI-PE

Cross section (flexible) (min.) :

0.5mm²

RoHS-compliant :

yes

Length :

45mm

Number of Levels :

2

Stripping length (max.) :

8mm

Factory Lead Time :

12 Weeks, 1 Day

Manufacturer part # :

1992230000

Width :

3.5mm

Subcategory :

Terminal Blocks

Color :

Beige

Cross section (flexible) (max.) :

1.5mm²

Nominal current (details) :

13.5A

Product Type :

DIN Rail Terminal Blocks

Cross section (inflexible) (min.) :

0.5mm²

Voltage Rating :

250 V

RoHS :

Compliant

Minimum Operating Temperature :

-60°C

Rated current In :

13.5

AWG max. :

14

Content :

100pc(s)

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 1.5

Height :

89mm

Current Rating :

13.5A

Nominal voltage (details) :

250V

Nominal current - rounded value :

13.5A
