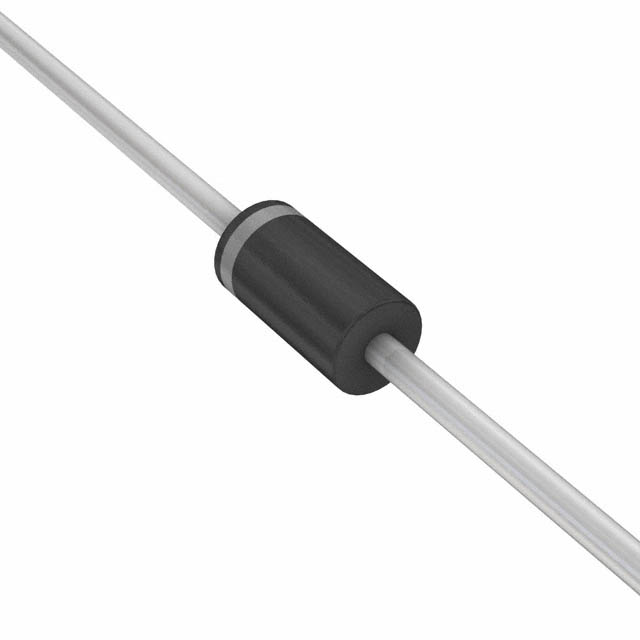

1A2

Manufacturer :

SMC Diode Solutions

Product Category :

Diodes - Rectifiers - Single

Terminal Finish :

Matte Tin (Sn)

JESD-609 Code :

e3

JESD-30 Code :

O-PALF-W2

Qualification Status :

Not Qualified

Voltage - DC Reverse (Vr) (Max) :

100V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Diode Element Material :

SILICON

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

High Reliability

Diode Type :

Standard

Number of Terminations :

2

Pin Count :

2

Reach Compliance Code :

not_compliant

Capacitance @ Vr, F :

15pF @ 4V 1MHz

HTS Code :

8541.10.00.80

Current - Average Rectified (Io) :

1A

Case Connection :

Isolated

Packaging :

Tape and Reel (TR)

Speed :

Standard Recovery >500ns, > 200mA (Io)

ECCN Code :

EAR99

Pbfree Code :

yes

Output Current-Max :

1A

Surface Mount :

No

Terminal Form :

Wire

Operating Temperature - Junction :

-55°C~150°C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole

Number of Elements :

1

Configuration :

Single

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 40V

Operating Temperature (Max) :

150°C

Rep Pk Reverse Voltage-Max :

100V

Package / Case :

R-1, Axial

Non-rep Pk Forward Current-Max :

30A
