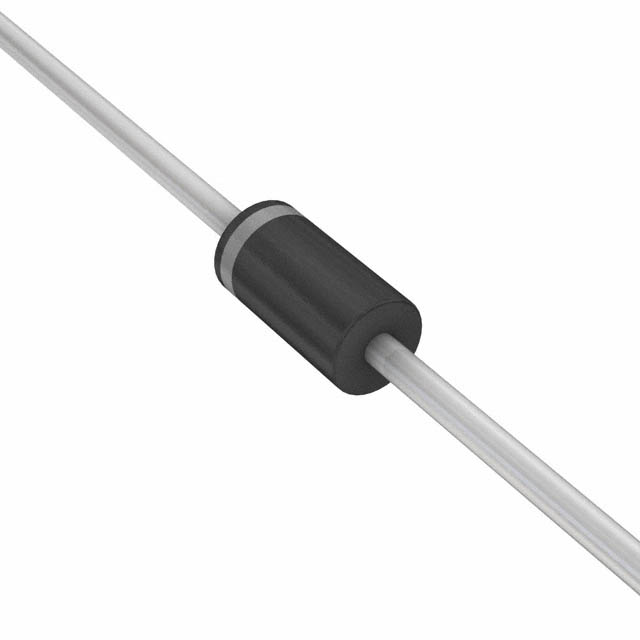

1A5

Manufacturer :

SMC Diode Solutions

Product Category :

Diodes - Rectifiers - Single

RoHS Status :

RoHS Compliant

Qualification Status :

Not Qualified

Current - Average Rectified (Io) :

1A

Diode Type :

Standard

Reach Compliance Code :

not_compliant

Operating Temperature (Max) :

150°C

Rep Pk Reverse Voltage-Max :

600V

Number of Terminations :

2

Capacitance @ Vr, F :

15pF @ 4V 1MHz

Additional Feature :

High Reliability

Diode Element Material :

SILICON

JESD-609 Code :

e3

Speed :

Standard Recovery >500ns, > 200mA (Io)

Case Connection :

Isolated

Terminal Finish :

Matte Tin (Sn)

JESD-30 Code :

O-PALF-W2

Surface Mount :

No

Pin Count :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - DC Reverse (Vr) (Max) :

600V

Operating Temperature - Junction :

-55°C~150°C

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Configuration :

Single

Terminal Form :

Wire

Package / Case :

R-1, Axial

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

HTS Code :

8541.10.00.80

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 40V

Non-rep Pk Forward Current-Max :

30A

Number of Elements :

1

Output Current-Max :

1A

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole
