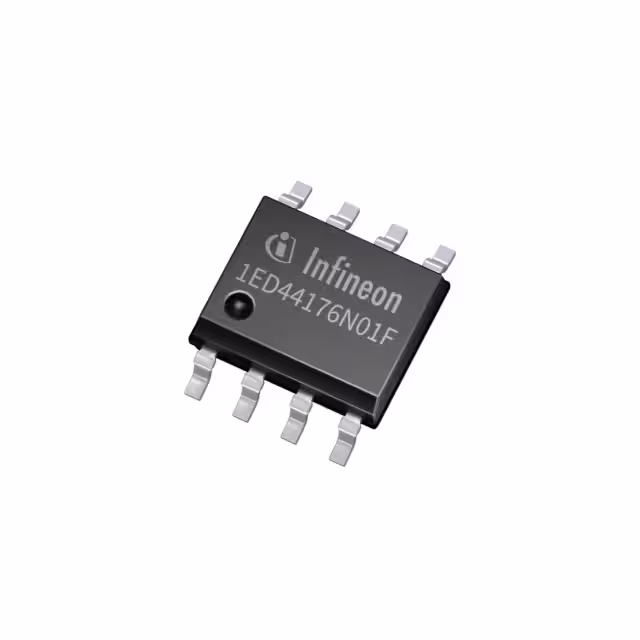

1ED44176N01FXUMA1

Gate Drivers Infineon Technologies 1ED44176N01FXUMA1 Overview

The Gate Drivers Infineon Technologies 1ED44176N01FXUMA1 is an advanced low-side gate driver designed to enhance the performance and reliability of your applications. This integrated circuit is optimized for driving MOSFETs and IGBTs, ensuring efficient operation with a minimal footprint. Manufactured by Infineon Technologies, a leader in semiconductor solutions, the 1ED44176N01FXUMA1 provides robust output stages to handle high peak currents up to 10A, making it a cornerstone for developing high-efficiency, high-density power systems. Its built-in protective features safeguard against overcurrent, making it particularly reliable in complex electronic assemblies.

1ED44176N01FXUMA1 Features

• Robust output stage with high current capability (up to 10A peak)
• Integrated under-voltage lockout and overcurrent protection
• Wide operating voltage range from 4.5V to 25V
• High dV/dt immunity and low propagation delays for precise control
• Compact DSO8 package suitable for space-constrained applications

1ED44176N01FXUMA1 Applications

• Motor Control Systems: Utilizes high peak current capability to drive motors efficiently in industrial automation and automotive applications.
• Power Management: Supports advanced power management techniques in server farms and telecommunications equipment by ensuring stable and precise gate driving.
• Switch Mode Power Supplies (SMPS): Improves efficiency and reliability in SMPS designs with its robust driving capabilities and protective features.
• LED Lighting: Enables improved performance in LED lighting systems through precise control of low-side switching.
• Consumer Electronics: Ideal for driving components in consumer electronics where efficiency and compact sizing are critical.
