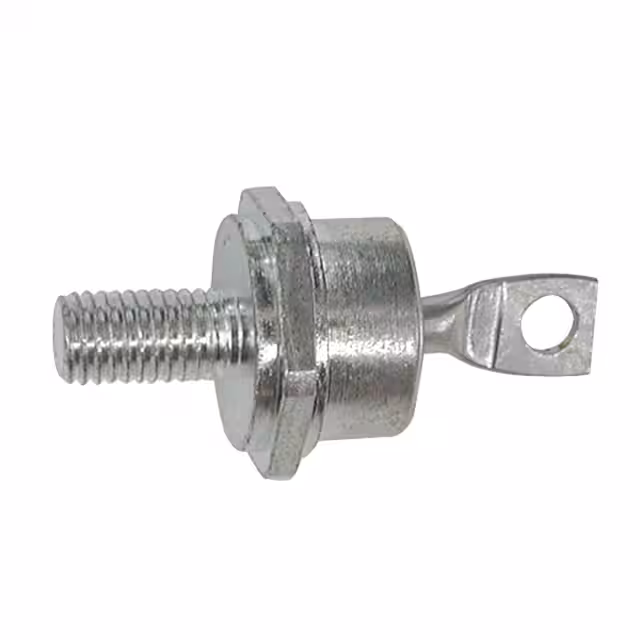

1N1185

Manufacturer :

Solid State Inc.

Product Category :

Diodes - Rectifiers - Single

HTS Code :

8541.10.00.80

Qualification Status :

Not Qualified

RoHS Status :

Non-RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

JESD-30 Code :

O-MUPM-D1

Terminal Form :

Solder Lug

Application :

Power

Number of Elements :

1

Pin Count :

1

JEDEC-95 Code :

DO-203AB

Terminal Finish :

TIN LEAD

Published :

1997

Configuration :

Single

Surface Mount :

No

Case Connection :

ANODE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature (Max) :

200°C

Forward Voltage-Max :

1.19V

Operating Temperature (Min) :

-65°C

Number of Terminations :

1

Factory Lead Time :

20 Weeks

Non-rep Pk Forward Current-Max :

800A

Diode Type :

RECTIFIER DIODE

Terminal Position :

UPPER

Rep Pk Reverse Voltage-Max :

150V

Pbfree Code :

No

Number of Phases :

1

JESD-609 Code :

e0

Diode Element Material :

SILICON

Output Current-Max :

40A
