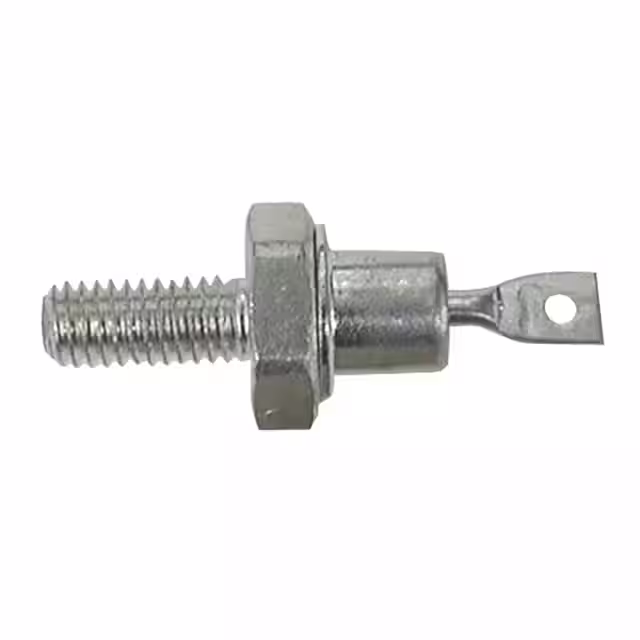

1N1205

Manufacturer :

Solid State Inc.

Product Category :

Diodes - Rectifiers - Single

Lifecycle Status :

IN PRODUCTION (Last Updated: 2 weeks ago)

Operating Temperature (Min) :

-65°C

Operating Temperature (Max) :

200°C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

1

Application :

Power

Forward Voltage-Max :

1.4V

Non-rep Pk Forward Current-Max :

250A

Reference Standard :

MIL

Surface Mount :

No

Terminal Form :

Solder Lug

Diode Type :

RECTIFIER DIODE

Number of Elements :

1

Terminal Position :

UPPER

HTS Code :

8541.10.00.80

Terminal Finish :

TIN LEAD

Pbfree Code :

No

Qualification Status :

Not Qualified

RoHS Status :

Non-RoHS Compliant

Number of Phases :

1

JESD-609 Code :

e0

JEDEC-95 Code :

DO-203AA

Factory Lead Time :

8 Weeks

Rep Pk Reverse Voltage-Max :

500V

Packaging :

Bulk

Published :

1997

Diode Element Material :

SILICON

Case Connection :

CATHODE

Number of Terminations :

1

Output Current-Max :

12A

Reverse Recovery Time-Max :

5μs

JESD-30 Code :

O-MUPM-D1

Configuration :

Single
