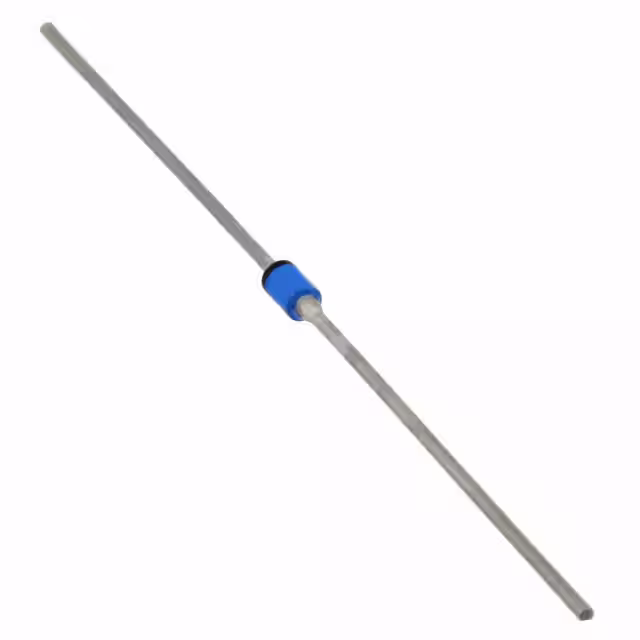

1N4701/TR

Manufacturer :

Microchip Technology

Product Category :

Diodes - Zener - Single

Diode Element Material :

SILICON

Packaging :

Tape and Reel (TR)

Voltage - Forward (Vf) (Max) @ If :

1.5V @ 100mA

JEDEC-95 Code :

DO-35

Package / Case :

DO-204AH, DO-35, Axial

Voltage - Zener (Nom) (Vz) :

14V

Reference Voltage :

14V

Polarity :

Unidirectional

Surface Mount :

No

Terminal Position :

Axial

RoHS Status :

Non-RoHS Compliant

Mounting Type :

Through Hole

Pbfree Code :

No

Power Dissipation-Max :

0.25W

JESD-609 Code :

e0

Operating Temperature :

-65°C ~ 200°C (TJ)

Number of Elements :

1

Case Connection :

Isolated

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Additional Feature :

LOW LEVEL

ECCN Code :

EAR99

Terminal Finish :

TIN LEAD

Reach Compliance Code :

not_compliant

Tolerance :

±5%

Terminal Form :

Wire

HTS Code :

8541.10.00.50

Number of Terminals :

2

RoHS :

Non-Compliant

Current - Reverse Leakage @ Vr :

50nA @ 10.6V

JESD-30 Code :

O-PALF-W2

Diode Type :

ZENER DIODE

Power - Max :

500mW

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Supplier Device Package :

DO-35

Configuration :

Single

Series :

--
