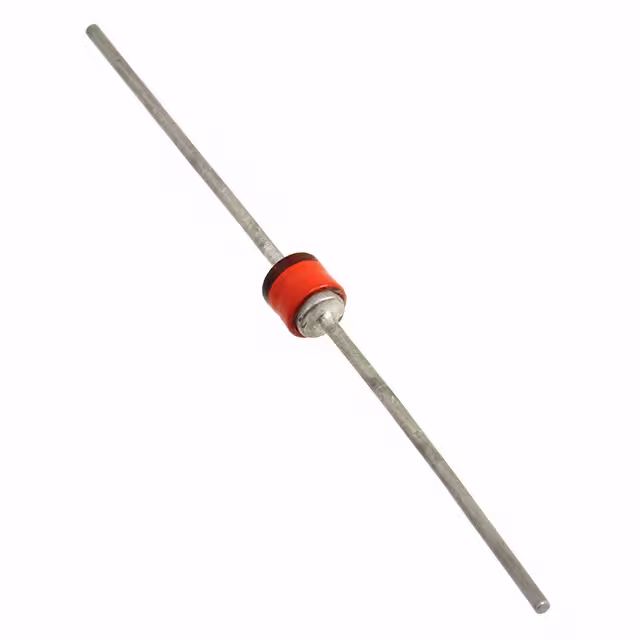

1N5610

Manufacturer :

Microchip Technology

Product Category :

Reverse Breakdown Voltage :

33 V

Additional Feature :

HIGH RELIABILITY, METALLURGICALLY BONDED

Polarity :

Unidirectional

Min Operating Temperature :

-55 °C

Pbfree Code :

No

Non-rep Peak Rev Power Dis-Max :

1500 W

Schedule B :

8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/8541100080/85

Terminal Finish :

Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

Clamping Voltage :

47.6 V

Voltage - Breakdown (Min) :

33V

RoHS :

Compliant

Leakage Current :

5 µA

Voltage - Reverse Standoff (Typ) :

30.5V

ECCN Code :

EAR99

Max Reverse Leakage Current :

5 µA

Peak Pulse Current :

32 A

Reverse Standoff Voltage :

30.5 V

Unidirectional Channels :

1

Power - Peak Pulse :

1500W (1.5kW)

Min Breakdown Voltage :

33 V

Package Shape :

Round

Package / Case :

G, Axial

Case Connection :

Isolated

Max Operating Temperature :

175 °C

Pin Count :

2

Operating Temperature :

-55°C ~ 175°C (TJ)

Terminal Position :

Axial

Power Dissipation-Max :

3 W

Test Current :

1 mA

Number of Elements :

1

Qualification Status :

Not Qualified

Product Status :

Discontinued at Digi-Key

Surface Mount :

No

Capacitance @ Frequency :

-

Applications :

GENERAL PURPOSE

Configuration :

Single

Rep Pk Reverse Voltage-Max :

30.5 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Terminals :

2

Diode Type :

TRANS VOLTAGE SUPPRESSOR DIODE

Radiation Hardening :

yes

Peak Pulse Power :

1.5 kW

Reach Compliance Code :

Unknown

HTS Code :

8541.10.00.50

Voltage - Clamping (Max) @ Ipp :

47.6V

JESD-609 Code :

e0

Direction :

Unidirectional

Number of Pins :

2

Package :

Bulk

Supplier Device Package :

G, Axial

Power Line Protection :

No

Mounting Type :

Through Hole

Breakdown Voltage-Min :

33 V

Mount :

Through Hole

Terminal Form :

Wire

Lifecycle Status :

Production (Last Updated: 2 months ago)

JESD-30 Code :

O-LALF-W2

Type :

Zener

Series :

-

Element Configuration :

Single

Diode Element Material :

SILICON
