1SV246-TL-EX
Or copy the link below:
- Mfr.Part #
- 1SV246-TL-EX
- Manufacturer
- onsemi
- Package / Case

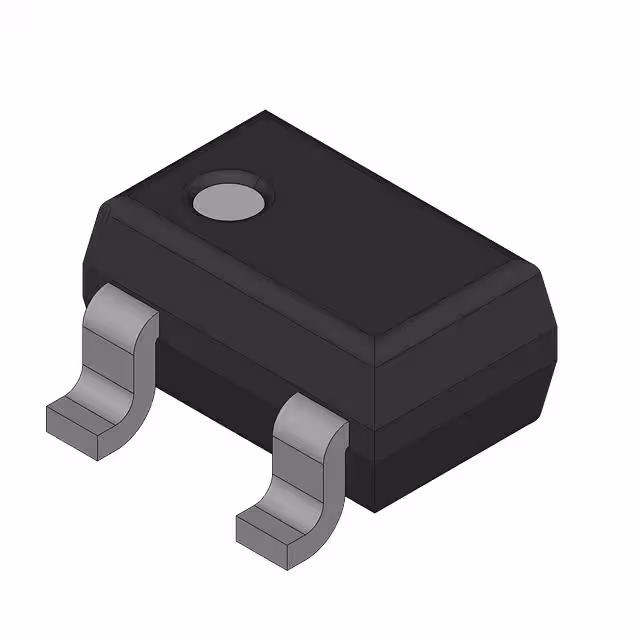

- SC-70, SOT-323
- Datasheet
- Download
- Description
- 1SV246 - PIN DIODE
- Stock
- 9,000
- In Stock ：
- 9,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Diodes - RF
- Diode Type :
- PIN - 1 Pair Series Connection
- Current - Max :
- 50mA
- Resistance @ If, F :
- 5Ohm @ 10mA 100MHz
- Power Dissipation-Max :
- 100mW
- Operating Temperature :
- 125°C TJ
- Supplier Device Package :
- 3-MCP
- Package / Case :
- SC-70, SOT-323
- Packaging :
- Tape and Reel (TR)
- Capacitance @ Vr, F :
- 0.23pF @ 50V 1MHz
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Peak Reverse (Max) :
- 50V
- Datasheets
- 1SV246-TL-EX
PIN - 1 Pair Series Connection 0.23pF @ 50V 1MHz 125°C TJ Tape & Reel (TR) SC-70, SOT-323
1SV246-TL-EX Overview
This device is designed to operate from the maximal current of 50mA.In accordance with the applicable device specifications, this device operates at a maximum peak reverse voltage of 50V.
1SV246-TL-EX Features
from a maximum current of 50mA volts
1SV246-TL-EX Applications
There are a lot of ON Semiconductor
1SV246-TL-EX applications of RF diodes.
- Sensor interfaces of security systems
- Telematic systems
- Compensators
- Radar systems for industrial use
- Ultra high-speed switching
- Clamping circuits
- Diode ring mixer
- RF detector
- RF voltage doubler
- Wearables
