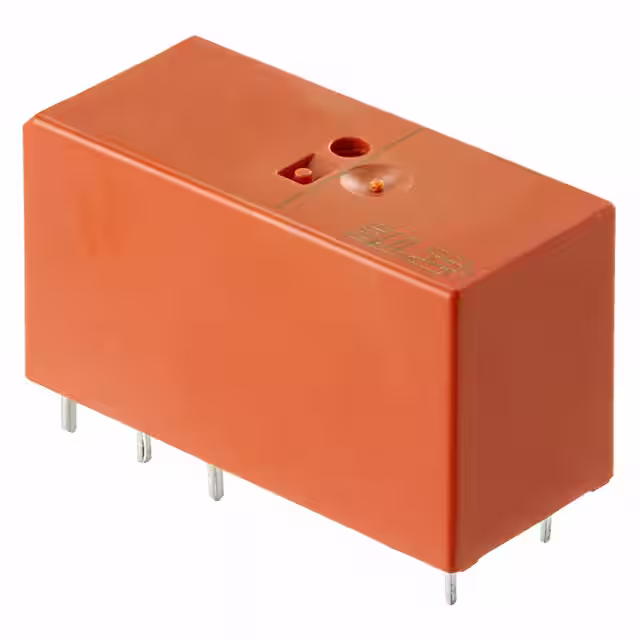

2-1393243-8
Or copy the link below:
- Mfr.Part #
- 2-1393243-8
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 8A 230V
- Stock
- 32,097
- In Stock ：
- 32,097
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Coil Type :
- Non Latching
- Coil Current(AC)-Max :
- 0.003 A
- Contact/Output Supply Type :
- AC/DC
- Features :
- Insulation - Class F, Sealed - Fully
- Contact Material :
- Silver Nickel (AgNi)
- Product Type :
- General Purpose Relays
- Base Product Number :
- 1393243
- Length :
- 29 mm
- Product Status :
- Active
- Coil Voltage(AC)-Max :
- 230 V
- Operating Temperature :
- -40°C ~ 70°C
- Contact Form :
- DPDT (2 Form C)
- Switching Voltage :
- 400VAC - Max
- RoHS :
- Details
- Reference Standard :
- BEAB; FIMKO; SEMKO; UL; VDE
- Seal Rating :
- Sealed - Fully
- Contact Current(DC)-Max :
- 8 A
- Type :
- Low Power
- Brand :
- TE Connectivity
- Additional Feature :
- COIL OPERATE VOLTAGE(AC): 172.5, COIL RELEASE VOLTAGE(AC): 34.5
- Termination Style :
- PC Pin
- Body Length or Diameter :
- 29 mm
- Surface Mount :
- No
- Product Category :
- General Purpose Relays
- Body Breadth :
- 12.7 mm
- Turn On Voltage (Max) :
- 172.5 VAC
- Reach Compliance Code :
- Compliant
- Moisture Sensitivity Level (MSL) :
- --
- Height :
- 15.7 mm
- Product :
- Power Relays
- Coil Insulation :
- Class F
- Must Operate Voltage :
- 172.5 VAC
- Contact Current(AC)-Max :
- 8 A
- Packing Method :
- Box
- Subcategory :
- Relays
- Package :
- Tube
- Turn Off Voltage (Min) :
- 34.5 VAC
- Contact Rating (Current) :
- 8A
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- ECCN Code :
- EAR99
- Must Release Voltage :
- 34.5 VAC
- Coil Voltage :
- 230VAC
- Relay Type :
- POWER/SIGNAL RELAY
- Coil/Input Supply Type :
- AC
- Power Consumption :
- 0.74 VA
- Termination Type :
- Solder
- Coil Resistance :
- 32500 Ω
- Contact Current Rating :
- 8 A
- Relay Function :
- DPDT
- Body Height :
- 15.7 mm
- Mounting Type :
- Through Hole
- Relay Action :
- Momentary
- Brand Name :
- Schrack
- Mounting Style :
- PCB Mount
- Packaging :
- Tube
- Coil Power :
- 750 mW
- Series :
- RT2, SCHRACK
- Width :
- 12.7 mm
- Physical Dimension :
- 29mm x 12.7mm x 15.7mm
- Contact Termination :
- Solder Pin
- Coil Termination :
- Solder Pin
- Datasheets
- 2-1393243-8
