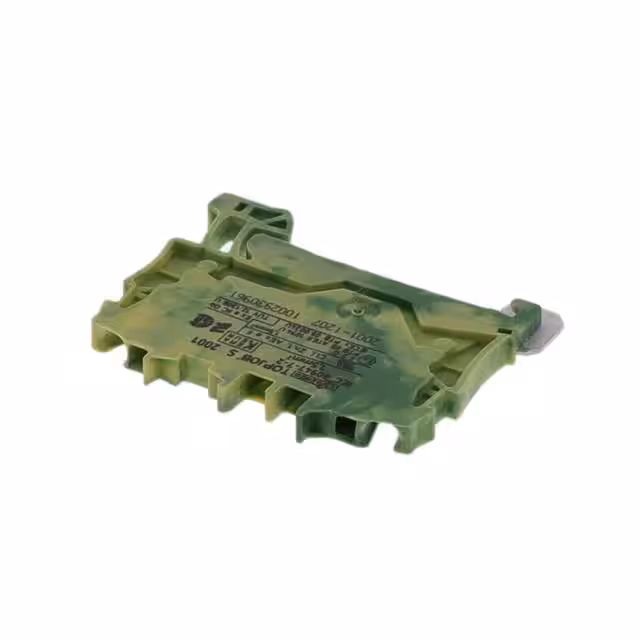

2001-1207

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (flexible) (min.) :

0.25mm²

Termination Style :

Push In, Spring

Mounting Style :

T DIN RAIL

Stripping Length :

9mm ~ 11mm

Nominal current (details) :

18A

AWG max. :

14

Wire Gauge :

14-22(AWG)

Fuse Type :

-

Number of Positions :

2

Type :

Grounding Block

Clamp width :

4.20mm

Current Rating :

18 A

Number of Contacts :

2(POS)

Rated Voltage :

800V

Manufacturer :

Wago

Wire Gauge or Range - AWG :

14-18 AWG

Connection :

-

Cross section (inflexible) (max.) :

1.50mm²

Cross section (flexible) (max.) :

2.50mm²

Voltage - IEC :

-

Width :

4.20mm

Number of Circuits :

1

Color :

Green-Yellow

Product Depth (mm) :

4.2(mm)

Nominal current - rounded value :

18A

Rad Hardened :

No

Weight :

0.01

Flammability Rating :

UL94 V-0

Housing Color :

Green/yellow

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Pins per row :

2

Nominal current :

18A

Voltage Rating :

800 V

Base Product Number :

2001-120

Cross section (inflexible) (min.) :

0.25mm²

Housing Material :

Polyamide 6/6

Contact Plating :

Copper, Tin

RoHS :

yes

Configuration :

Terre

HTS Code :

8536.69.40.40

Product Status :

Active

Mounting Type :

DIN Rail

Number of Pins :

2

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Product Length (mm) :

50.8(mm)

Stripping length (max.) :

11mm

Wire/Cable Gauge :

22 AWG

Contact Pitch (mm) :

Not Required(mm)

Package :

Bulk

Terminal - Width :

4.2mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Reach Compliance Code :

Compliant

Material Flammability Rating :

-

Disconnect Type :

-

Manufacturer part # :

2001-1207

Content :

1pc(s)

Voltage - UL :

-

Schedule B :

8536904000/8536904000/8536904000/8536904000/8536904000

Number of Contact Rows :

1

Number of Levels :

1

Series :

TOPJOB®S

Approvals :

cURus;CSA

Number of Rows :

1

Features :

-

Rated Current :

18A

Contact Material :

Steel

No. of rows :

1

Packaging :

Box

ECCN Code :

EAR99

Min. stripping length :

9mm

Product Height (mm) :

33(mm)

AWG (min.) :

22

Number of Poles :

2
