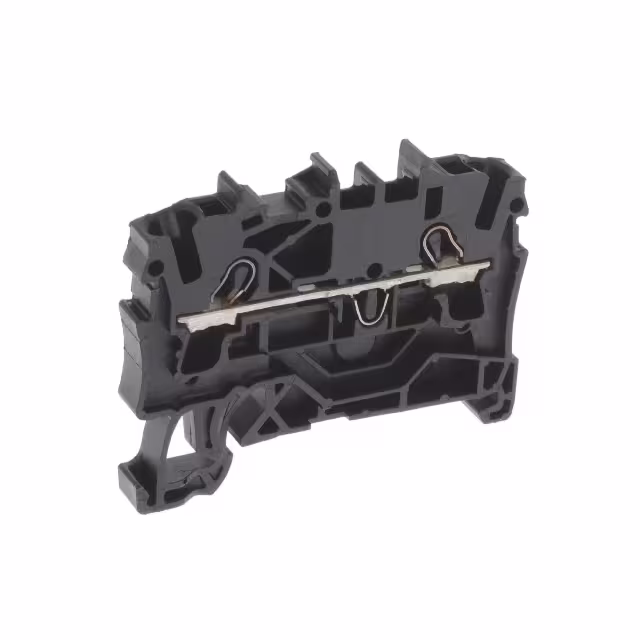

2002-1205

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Stripping Length :

10mm ~ 12mm

Automotive :

No

Current - UL :

20 A

Maximum Current Rating (A) :

20

Fuse Type :

-

Manufacturer :

Wago

Connectable conductor cross section multi-wired :

0.25 - 2.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Rated current In :

24

Package :

Bulk

Mounting Type :

DIN Rail

Termination Style :

Push In, Spring

Voltage - IEC :

800V

Tradename :

CAGE CLAMP?

Height :

48.5

Length :

48.5

Flammability Rating :

UL94 V-0

Depth :

32.9

Disconnect Type :

-

Number of Circuits :

1

Voltage - UL :

600V

Number of Levels :

1

Rated Current :

24A

Number of Positions :

2

PPAP :

No

Lead Free :

Lead Free

Terminal - Width :

5.2mm

EU RoHS :

Compliant

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Width :

5.2

Material Flammability Rating :

-

Approvals :

CSA, cURus

RoHS :

yes

HTS :

8536.90.40.00

Wire Gauge or Range - AWG :

12-18 AWG

Type :

Terminal Block

Color :

Black

Termination Method :

Spring Clamp

Mounting :

T DIN RAIL

Rated Voltage :

800V

Packaging :

Box

Base Product Number :

2002

Product Status :

Active

ECCN (US) :

EAR99

Wire Gauge or Range - mm² :

0.75-4mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Series :

TOPJOB®S

Number of Contacts :

2

Current - IEC :

32 A

Features :

-

Connectable conductor cross section solid-core :

0.75 - 4

Inflammability class of insulation material according to with UL94 :

V0
