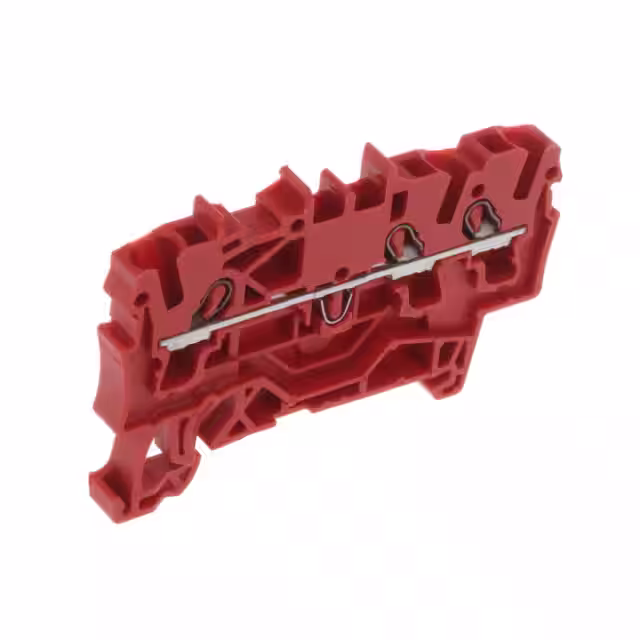

2002-1303

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Disconnect Type :

-

Rad Hardened :

No

Number of Positions :

3

Features :

-

Wire Gauge or Range - mm² :

0.75-4mm²

Stripping Length :

10mm ~ 12mm

PPAP :

No

Number of Contact Rows :

3

Housing Color :

Gray

Wire Gauge or Range - AWG :

12-18 AWG

Terminal - Width :

5.2mm

Fuse Type :

-

RoHS :

yes

Series :

TOPJOB®S

Wire Gauge :

12-22(AWG)

Package :

Bulk

Current Rating (Max) :

32(A)

Number of Levels :

1

Number of Circuits :

1

Product Length (mm) :

59.2

HTS :

8536.90.40.00

Termination Style :

Push In, Spring

Rated Current :

24A

Current - UL :

20 A

Voltage - UL :

600V

Operating Voltage (Max) :

800V

Product Height (mm) :

32.9

Material Flammability Rating :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Maximum Current Rating (A) :

32

Number of Rows :

3

Number of Contacts :

3

Voltage - IEC :

800V

Mounting Type :

DIN Rail

Automotive :

No

Maximum Operating Temperature (°C) :

105

Minimum Operating Temperature (°C) :

-60

Packaging :

Box

Product Status :

Active

Color :

Red

ECCN (US) :

EAR99

EU RoHS :

Compliant

Rated Voltage :

800V

Mounting Style :

Din-Rail

Housing Material :

Polyamide 6/6

Type :

Terminal Block

Current - IEC :

32 A

Maximum Voltage Rating :

800V

Manufacturer :

Wago

Mounting :

DIN Rail

Base Product Number :

2002
