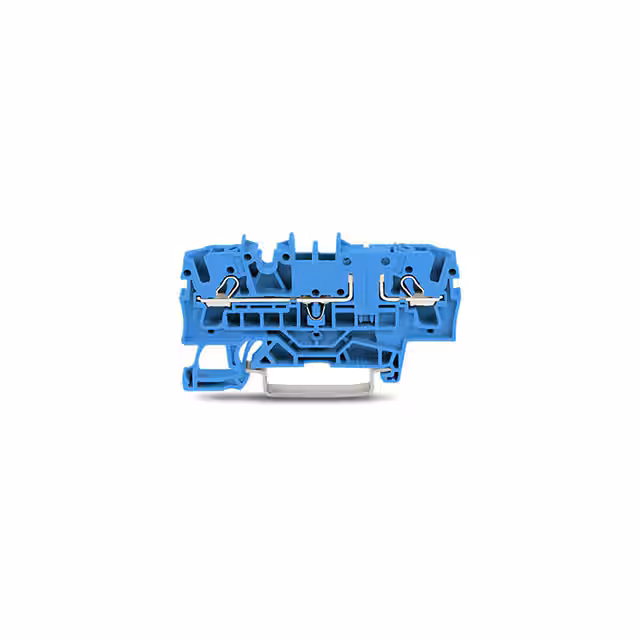

2002-1604

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (inflexible) (max.) :

2.50mm²

Nominal voltage :

400V

Package :

Box

Maximum Operating Temperature (°C) :

105

Product Status :

Active

Tradename :

CAGE CLAMP?

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Wire Gauge or Range - mm² :

0.25-4mm²

Configuration :

N

Termination Method :

Clamp

Height :

66.1

No. of rows :

1

Series :

TOPJOB®S

Number of Positions :

2

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

RoHS :

yes

Stripping length (max.) :

12mm

AWG max. :

12

Nominal current :

16A

PPAP :

No

Clamp width :

5.20mm

Features :

+ test option,+ swivelling cutter

Connectable conductor cross section solid-core :

0.75 - 4

Number of Rows :

2

Voltage - UL :

300V

Inflammability class of insulation material according to with UL94 :

V0

Cross section (flexible) (min.) :

0.25mm²

Mounting Type :

DIN Rail

Fuse Type :

-

Material Flammability Rating :

UL94 V-0

Minimum Operating Temperature (°C) :

-60

Disconnect Type :

-

EU RoHS :

Compliant

Terminal - Width :

5.2mm

Min. stripping length :

10mm

Stripping Length :

10mm ~ 12mm

Manufacturer :

Wago

Product Length (mm) :

66.1

Connection :

-

Cross section (inflexible) (min.) :

0.25mm²

Current - UL :

15 A

Content :

1pc(s)

Manufacturer part # :

2002-1604

Product Height (mm) :

32.9

Pins per row :

2

Current - IEC :

16 A

Depth :

32.9

Maximum Voltage Rating :

300V

Number of Contacts :

2

Connectable conductor cross section multi-wired :

0.25 - 2.5

Mounting :

DIN Rail

Nominal current (details) :

16A

Termination Style :

Push In, Spring

Nominal current - rounded value :

16A

Type :

Terminal Block

Voltage - IEC :

400V

Rated current In :

16

Number of Circuits :

2

Width :

5.20mm

Cross section (flexible) (max.) :

4mm²

Color :

Blue

Housing Color :

Blue

Wire Gauge or Range - AWG :

12-22 AWG

Maximum Current Rating (A) :

16

ECCN (US) :

EAR99

HTS :

8536.90.40.00

Product Weight (g) :

7.6

Length :

66.5

AWG (min.) :

22

Automotive :

No

Number of Levels :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6
