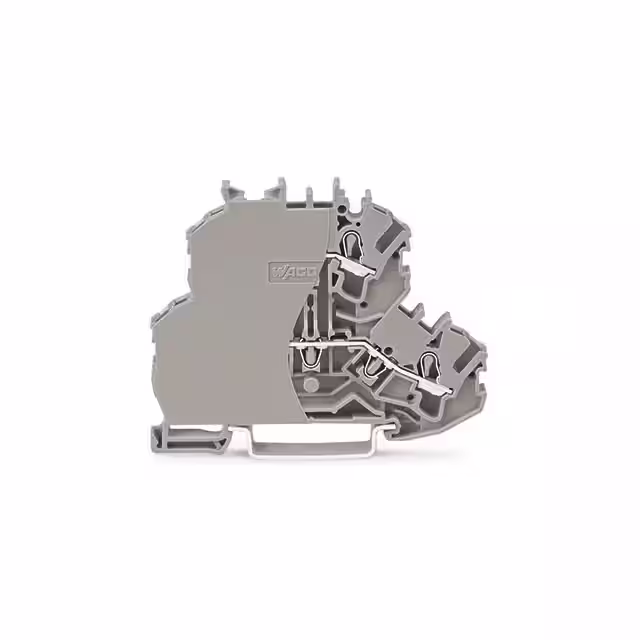

2002-2201/099-000

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section solid-core :

0.75 - 4

EU RoHS :

Compliant

Number of Positions :

4

Termination Style :

Push In, Spring

Voltage - UL :

600V

Features :

-

Manufacturer :

Wago

Voltage - IEC :

800V

Number of Levels :

2

Terminal - Width :

6.2mm

Product Status :

Active

Wire Gauge or Range - mm² :

0.25-4mm²

Package :

Box

Disconnect Type :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Length :

70

Rated current In :

24

Series :

TOPJOB®S

Wire Gauge or Range - AWG :

12-22 AWG

Width :

6.2

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section multi-wired :

0.25 - 2.5

ECCN (US) :

EAR99

Current - IEC :

24 A

Height :

69.7

Automotive :

No

PPAP :

No

Color :

Gray

Current - UL :

20 A

HTS :

8536.90.40.00

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Fuse Type :

-

Stripping Length :

10mm ~ 12mm

Material Flammability Rating :

UL94 V-0

Approvals :

UR;CSA

Type :

Double-Deck Block

Mounting Type :

DIN Rail

Depth :

51.7

RoHS :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6
