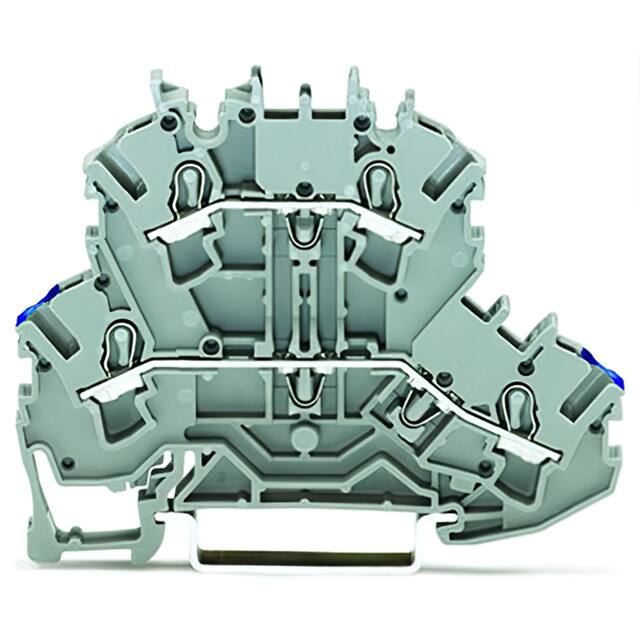

2002-2202

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Positions :

4

Housing Material :

Nylon

Type :

Double-Deck Block

Fuse Type :

-

EU RoHS :

Compliant

Stripping Length :

10mm ~ 12mm

Product Status :

Active

Width :

5.2 mm

Number of Levels :

2

Package :

Box

Flammability Rating :

UL94 V-0

Current Rating :

24 A

Terminal - Width :

5.2mm

Current - UL :

20 A

Mounting Type :

DIN Rail

Disconnect Type :

-

RoHS :

yes

Approvals :

UR;CSA

Termination Style :

Push In, Spring

ECCN (US) :

EAR99

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-0

Number of Circuits :

2

Color :

Gray

Voltage - UL :

300V

HTS :

8536.90.40.00

Voltage - IEC :

500V

Automotive :

No

Current - IEC :

28 A

PPAP :

No

Features :

-

Wire Gauge or Range - AWG :

12-22 AWG

Series :

TOPJOB®S

Number of Poles :

2

Wire Gauge or Range - mm² :

0.25-4mm²

Manufacturer :

Wago
