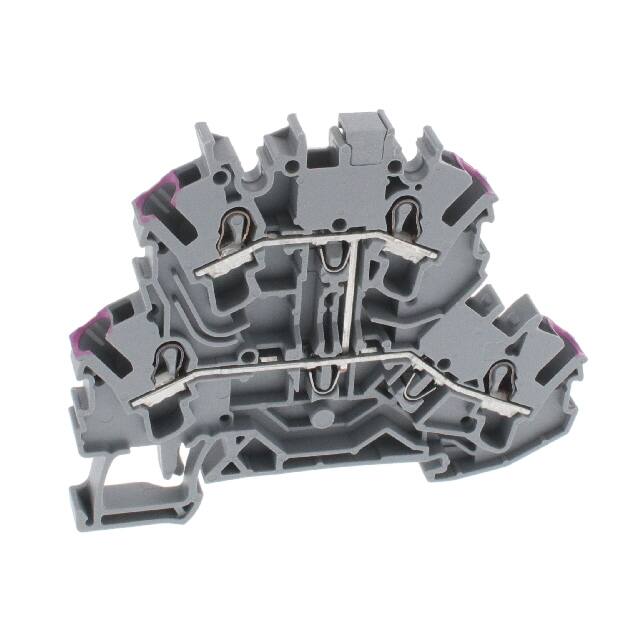

2002-2208

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Length :

70

Disconnect Type :

-

Voltage - IEC :

500V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage Rating :

500 V

Width :

5.2

Fuse Type :

-

Rated current In :

24

Package :

Bulk

Terminal - Width :

5.2mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Color :

Gray

Number of Levels :

Double

Height :

69.7

Connectable conductor cross section multi-wired :

0.25 - 2.5

Connectable conductor cross section solid-core :

0.75 - 4

Current - IEC :

28 A

Number of Positions :

4

Inflammability class of insulation material according to with UL94 :

V0

Current - UL :

20 A

Rated Current :

24A

Type :

Feed Through

Product Status :

Active

Depth :

51.7

Series :

2002

Termination Style :

Push In, Spring

Rated Voltage :

500V

Current Rating :

28A

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Voltage - UL :

300V

Features :

-

Termination Method :

Clamp

Wire Gauge or Range - AWG :

12-18 AWG

Stripping Length :

10mm ~ 12mm

Material Flammability Rating :

-

Base Product Number :

2002

Wire Gauge or Range - mm² :

0.75-4mm²
