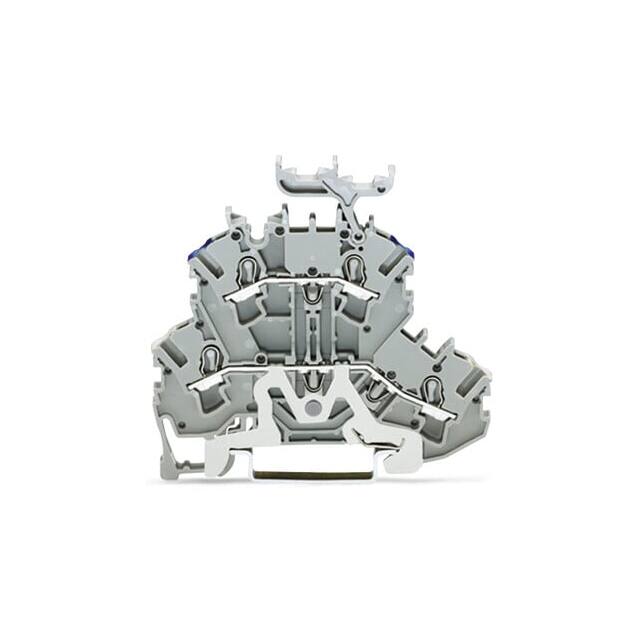

2002-2248

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Material Flammability Rating :

UL94 V-0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage - UL :

300V

RoHS :

yes

Manufacturer :

Wago

Height :

69.7

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Depth :

61.8

Series :

TOPJOB®S

ECCN (US) :

EAR99

Current - IEC :

28 A

PPAP :

No

Wire Gauge or Range - AWG :

12-22 AWG

Width :

5.2

Connectable conductor cross section multi-wired :

0.25 - 2.5

Color :

Gray

Wire Gauge or Range - mm² :

0.25-4mm²

Fuse Type :

-

Package :

Box

Number of Levels :

2; 1 Grounded

Stripping Length :

10mm ~ 12mm

Disconnect Type :

-

Approvals :

UR;CSA

Voltage - IEC :

500V

EU RoHS :

Compliant

Number of Circuits :

2

Type :

Double-Deck Block

Current - UL :

20 A

Terminal - Width :

5.2mm

Automotive :

No

Connectable conductor cross section solid-core :

0.75 - 4

Number of Positions :

4

HTS :

8536.90.40.00

Mounting Type :

DIN Rail

Inflammability class of insulation material according to with UL94 :

V0

Product Status :

Active

Features :

-

Termination Style :

Push In, Spring

Length :

70
