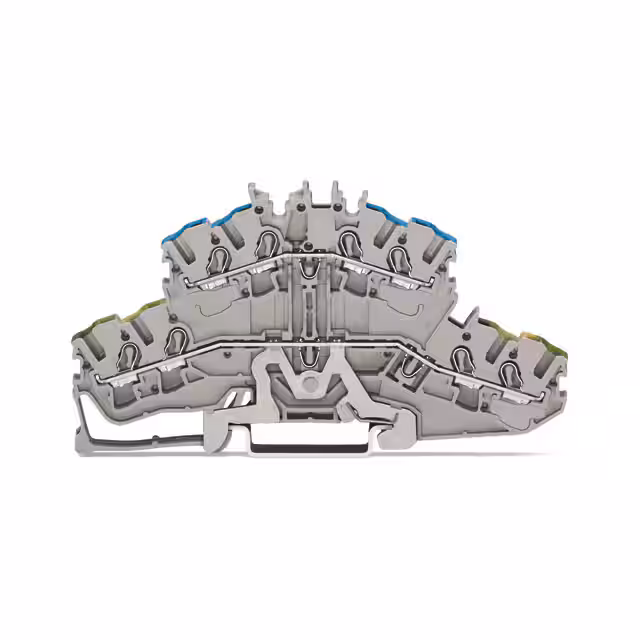

2002-2417

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Type :

DIN Rail

Product Status :

Active

Wire Gauge or Range - mm² :

0.25-4mm²

Voltage - UL :

300V

Features :

-

RoHS :

No

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage - IEC :

800V

Color :

Gray

Fuse Type :

-

Approvals :

CSA

Terminal - Width :

5.2mm

Manufacturer :

Wago

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Stripping Length :

10mm ~ 12mm

Series :

TOPJOB®S

Number of Positions :

8

Package :

Box

Width :

5.2

Height :

105.1

Connectable conductor cross section solid-core :

0.75 - 4

Termination Style :

Push In, Spring

Depth :

52.1

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Material Flammability Rating :

UL94 V-0

Current - UL :

20 A

Disconnect Type :

-

Current - IEC :

28 A

Type :

Double-Deck Block

Length :

105.5

Number of Levels :

2

Wire Gauge or Range - AWG :

12-22 AWG

Inflammability class of insulation material according to with UL94 :

V0

Flammability Rating :

UL94 V-0

Connectable conductor cross section multi-wired :

0.25 - 2.5
