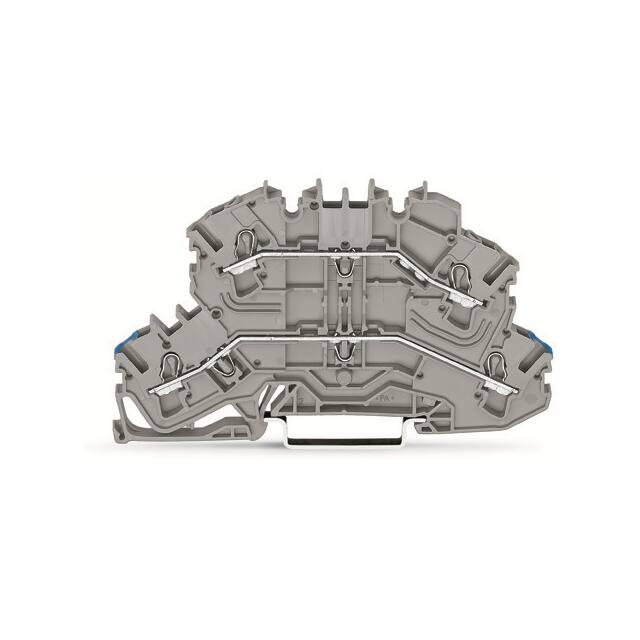

2002-2602

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Wire Gauge or Range - AWG :

12-22 AWG

Features :

-

Material Flammability Rating :

UL94 V-0

ECCN (US) :

EAR99

Connectable conductor cross section multi-wired :

0.25 - 2.5

Flammability Rating :

UL94 V-0

Color :

Gray

Type :

Double-Deck Block

Length :

93

Automotive :

No

Disconnect Type :

-

Inflammability class of insulation material according to with UL94 :

V0

Manufacturer :

Wago

Termination Style :

Push In, Spring

Number of Positions :

4

Height :

93

PPAP :

No

HTS :

8536.90.40.00

Package :

Box

Voltage - UL :

300V

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Number of Levels :

2

Voltage - IEC :

500V

Width :

5.2

Depth :

51.7

Wire Gauge or Range - mm² :

0.25-4mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Product Status :

Active

Fuse Type :

-

Mounting Type :

DIN Rail

Current - UL :

20 A

Terminal - Width :

5.2mm

RoHS :

yes

Current - IEC :

28 A

Stripping Length :

10mm ~ 12mm

Series :

TOPJOB®S

EU RoHS :

Compliant

Connectable conductor cross section solid-core :

0.75 - 4

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Rated current In :

24
