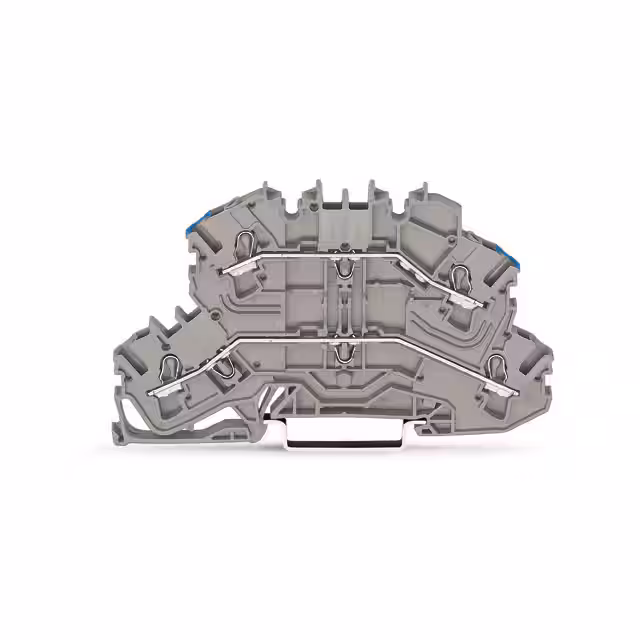

2002-2603

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - mm² :

0.25-4mm²

Voltage - IEC :

500V

Termination Style :

Push In, Spring

Depth :

51.7

Stripping Length :

10mm ~ 12mm

Features :

-

Height :

93

Material Flammability Rating :

UL94 V-0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Series :

TOPJOB®S

Current - IEC :

28 A

HTS :

8536.90.40.00

Voltage - UL :

300V

Width :

5.2

Number of Positions :

4

Number of Levels :

2

Connectable conductor cross section solid-core :

0.75 - 4

Mounting Type :

DIN Rail

Automotive :

No

Wire Gauge or Range - AWG :

12-22 AWG

EU RoHS :

Compliant

Connectable conductor cross section multi-wired :

0.25 - 2.5

Package :

Box

Product Status :

Active

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Current - UL :

20 A

Length :

93

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

ECCN (US) :

EAR99

Fuse Type :

-

Color :

Gray

RoHS :

yes

Rated current In :

24

PPAP :

No

Disconnect Type :

-

Manufacturer :

Wago

Type :

Double-Deck Block

Terminal - Width :

5.2mm
