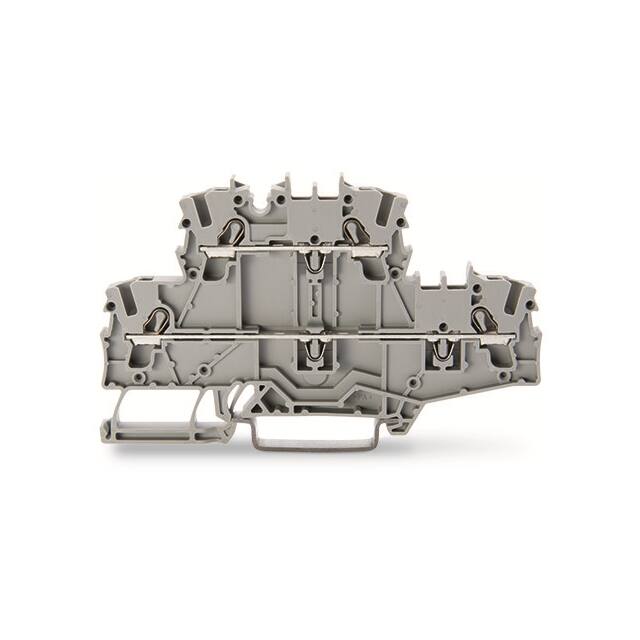

2002-2701

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section multi-wired :

0.25 - 2.5

Wire Gauge or Range - mm² :

0.25-4mm²

Stripping Length :

10mm ~ 12mm

Width :

5.2

Wire Gauge or Range - AWG :

12-22 AWG

Color :

Gray

Rated current In :

24

Number of Levels :

2

Voltage - UL :

600V

Fuse Type :

-

Current - UL :

20 A

Terminal - Width :

5.2mm

PPAP :

No

RoHS :

yes

Voltage - IEC :

800V

ECCN (US) :

EAR99

Automotive :

No

Length :

92.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Mounting Type :

DIN Rail

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Height :

92.5

Termination Style :

Push In, Spring

Connectable conductor cross section solid-core :

0.75 - 4

Number of Circuits :

2

Features :

-

Manufacturer :

Wago

EU RoHS :

Compliant

Series :

TOPJOB®S

Product Status :

Active

Current - IEC :

28 A

Number of Positions :

4

Disconnect Type :

-

Type :

Double-Deck Block

Depth :

51.7

HTS :

8536.90.40.00

Material Flammability Rating :

UL94 V-0

Package :

Box

Inflammability class of insulation material according to with UL94 :

V0
