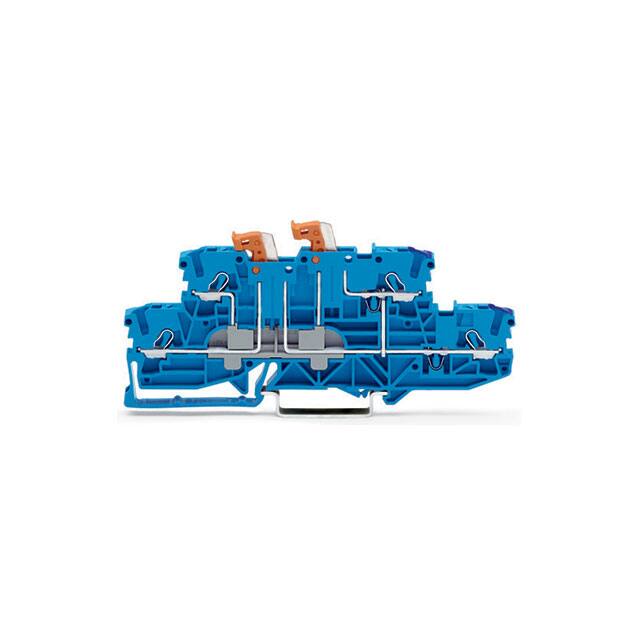

2002-2959

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Width :

5.2

Inflammability class of insulation material according to with UL94 :

V0

RoHS :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Connectable conductor cross section multi-wired :

0.25 - 2.5

HTS :

8536.90.40.00

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Mounting Type :

DIN Rail

Product Status :

Active

Manufacturer :

Wago

Termination Style :

Push In, Spring

ECCN (US) :

EAR99

Color :

Blue

PPAP :

No

Number of Levels :

2; Connected

Series :

TOPJOB®S

Number of Positions :

4

Current - UL :

15 A

EU RoHS :

Compliant

Type :

Double-Deck Block;Disconnect Block

Automotive :

No

Material Flammability Rating :

UL94 V-0

Package :

Box

Wire Gauge or Range - mm² :

0.25-4mm²

Fuse Type :

-

Stripping Length :

10mm ~ 12mm

Height :

108

Depth :

42

Length :

108

Current - IEC :

16 A

Disconnect Type :

Switch, Knife

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Voltage - UL :

300V

Voltage - IEC :

400V

Connectable conductor cross section solid-core :

0.75 - 4

Rated current In :

16

Wire Gauge or Range - AWG :

12-22 AWG

Terminal - Width :

5.2mm

Features :

-
