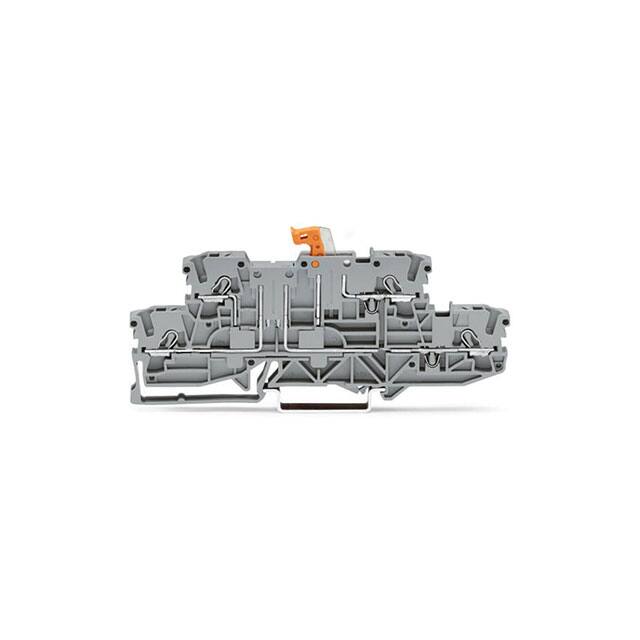

2002-2971

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

RoHS :

yes

Stripping Length :

10mm ~ 12mm

Color :

Gray

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Current - IEC :

16 A

Current - UL :

15 A

Package :

Box

Inflammability class of insulation material according to with UL94 :

V0

Features :

-

EU RoHS :

Compliant

Connectable conductor cross section multi-wired :

0.25 - 2.5

PPAP :

No

Mounting Type :

DIN Rail

Number of Levels :

2

Width :

5.2

Termination Style :

Push In, Spring

HTS :

8536.90.40.00

Product Status :

Active

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Material Flammability Rating :

UL94 V-0

Series :

TOPJOB®S

Height :

108

Disconnect Type :

Switch, Knife

Number of Positions :

4

Type :

Double-Deck Block;Disconnect Block

Connectable conductor cross section solid-core :

0.75 - 4

Terminal - Width :

5.2mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Manufacturer :

Wago

Wire Gauge or Range - mm² :

0.25-4mm²

Wire Gauge or Range - AWG :

12-22 AWG

Automotive :

No

Fuse Type :

-

Voltage - UL :

300V

Voltage - IEC :

400V

Length :

108

Depth :

42

Rated current In :

16
