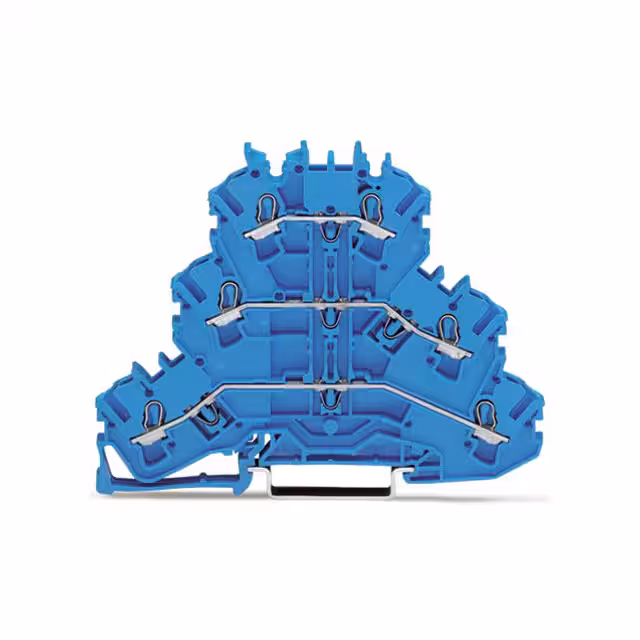

2002-3204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Material - Insulation :

Polyamide (PA66), Nylon 6/6

ECCN (US) :

EAR99

Voltage Rating :

500 V

Automotive :

No

Cross section (inflexible) (min.) :

0.25mm²

HTS :

8536.90.40.00

Clamp width :

5.20mm

Current - IEC :

28 A

Termination Style :

Push In, Spring

Rated current In :

24

Pins per row :

2

Depth :

69.5

Pitch :

5.2mm

Product Status :

Active

Manufacturer :

Wago

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

AWG max. :

14

Number of Contacts :

3

Nominal current (details) :

24 A (28 A for flexible conductors)

Maximum Current Rating (A) :

20

Terminal - Width :

5.2mm

Manufacturer part # :

2002-3204

Nominal voltage :

500V

Voltage - UL :

300V

Mounting :

T DIN RAIL

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

AWG (min.) :

22

Features :

-

Voltage - IEC :

500V

Material Flammability Rating :

UL94 V-0

Connection :

-

Current Rating :

24A

PPAP :

No

Nominal current :

24A

RoHS :

yes

Cross section (inflexible) (max.) :

4mm²

Cross section (flexible) (max.) :

2.50mm²

Approvals :

UL;CSA

EU RoHS :

Compliant

Wire Gauge or Range - mm² :

0.25-4mm²

Number of Positions :

6

Wire Gauge or Range - AWG :

12-22 AWG

Nominal current - rounded value :

24A

Package :

Box

Height :

93.3

Inflammability class of insulation material according to with UL94 :

V0

Series :

2002

Width :

5.20mm

Min. stripping length :

10mm

Disconnect Type :

-

Content :

1pc(s)

Connectable conductor cross section solid-core :

0.75 - 4

Current - UL :

20 A

No. of rows :

3

Configuration :

N,N,N

Mounting Type :

DIN Rail

Fuse Type :

-

Number of Levels :

Triple

Length :

93.5

Cross section (flexible) (min.) :

0.25mm²

Stripping length (max.) :

12mm

Color :

Blue

Tradename :

CAGE CLAMP?

Type :

Terminal Block

Termination Method :

Spring Clamp

Number of Circuits :

3

Stripping Length :

10mm ~ 12mm

Connectable conductor cross section multi-wired :

0.25 - 2.5
