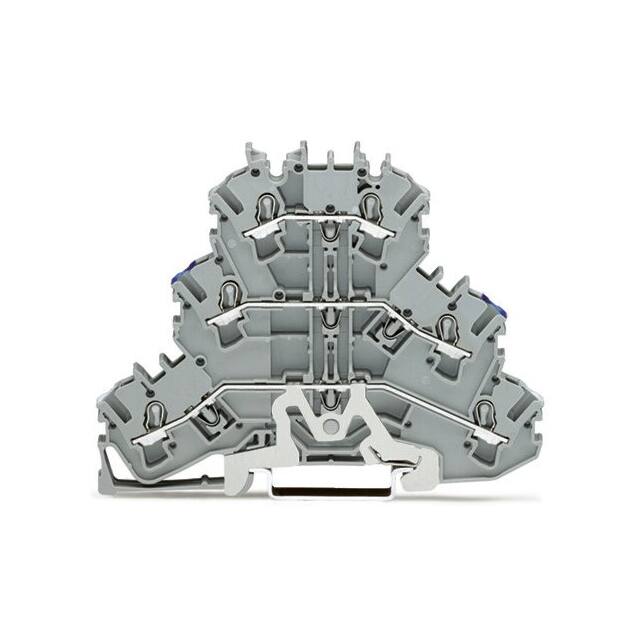

2002-3218

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section multi-wired :

0.25 - 2.5

Depth :

69.5

ECCN (US) :

EAR99

Disconnect Type :

-

PPAP :

No

Terminal - Width :

5.2mm

Package :

Box

Features :

-

Type :

Triple-Deck Block

Current - IEC :

28 A

Automotive :

No

Fuse Type :

-

Stripping Length :

10mm ~ 12mm

Number of Positions :

6

Inflammability class of insulation material according to with UL94 :

V0

EU RoHS :

Compliant

Mounting Type :

DIN Rail

Series :

TOPJOB®S

Length :

93.5

Approvals :

UR;CSA

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Voltage - IEC :

500V

Color :

Gray

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section solid-core :

0.75 - 4

Termination Style :

Push In, Spring

Material Flammability Rating :

UL94 V-0

Current - UL :

20 A

Height :

93.3

Wire Gauge or Range - AWG :

12-22 AWG

Number of Levels :

3

RoHS :

yes

Voltage - UL :

300V

HTS :

8536.90.40.00

Width :

5.2

Number of Circuits :

3

Manufacturer :

Wago

Product Status :

Active

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Wire Gauge or Range - mm² :

0.25-4mm²
