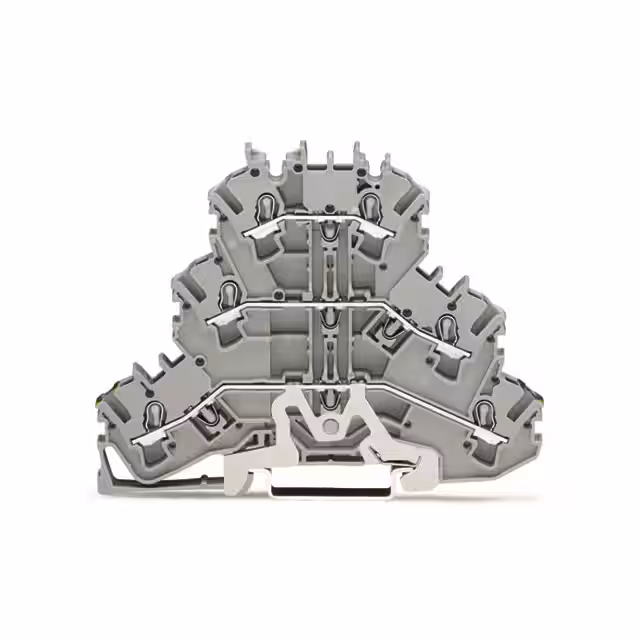

2002-3227

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Clamp width :

5.20mm

RoHS :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Pins per row :

2

EU RoHS :

Compliant

Series :

2002

Min. stripping length :

10mm

No. of rows :

3

Approvals :

CSA, UL

Type :

Grounding Block, Triple-Deck Block

Automotive :

No

Nominal current - rounded value :

24A

Voltage - IEC :

500V

Manufacturer part # :

2002-3227

Cross section (inflexible) (min.) :

0.25mm²

Features :

-

Cross section (inflexible) (max.) :

4mm²

Manufacturer :

Wago

Nominal current (details) :

24 A (28 A for flexible conductors)

Disconnect Type :

-

Nominal voltage :

500V

Current - IEC :

28 A

Terminal - Width :

5.2mm

Connection :

-

Width :

5.20mm

Cross section (flexible) (min.) :

0.25mm²

Fuse Type :

-

Configuration :

Terre,L,L

Cross section (flexible) (max.) :

2.50mm²

HTS :

8536.90.40.00

Package :

Box

Termination Method :

Push-In Cage Clamp

Mounting Type :

DIN Rail

Color :

Gray

ECCN (US) :

EAR99

Product Status :

Active

Current - UL :

20 A

Wire Gauge or Range - AWG :

12-22 AWG

Nominal current :

24A

Content :

1pc(s)

Number of Positions :

6

PPAP :

No

Stripping Length :

10mm ~ 12mm

Termination Style :

Push In, Spring

Wire Gauge or Range - mm² :

0.25-4mm²

AWG max. :

14

AWG (min.) :

22

Stripping length (max.) :

12mm

Material Flammability Rating :

UL94 V-0

Number of Levels :

3

Number of Circuits :

3

Voltage - UL :

300V
