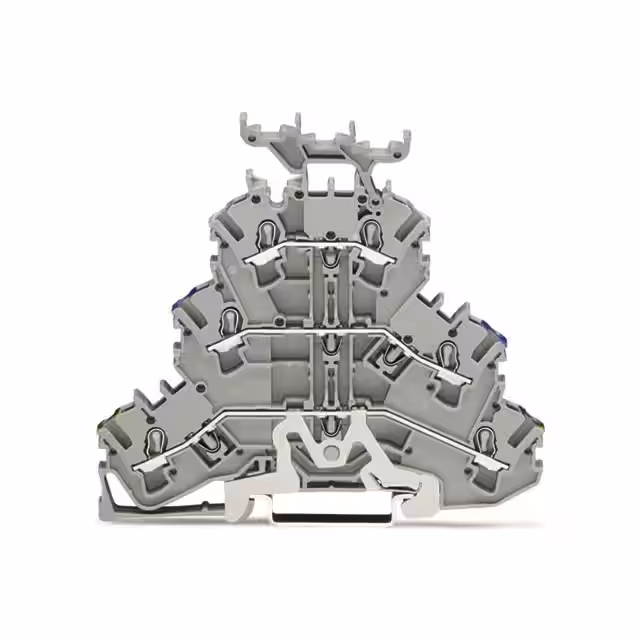

2002-3247

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

ECCN (US) :

EAR99

Connectable conductor cross section multi-wired :

0.25 - 2.5

Mounting Type :

DIN Rail

RoHS :

yes

Depth :

81.3

Approvals :

UL;CSA

Wire Gauge or Range - mm² :

0.25-4mm²

Width :

5.2

Length :

93.5

Wire Gauge or Range - AWG :

12-22 AWG

Connectable conductor cross section solid-core :

0.75 - 4

Fuse Type :

-

Type :

Grounding Block;Triple-Deck Block

Series :

TOPJOB®S

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Inflammability class of insulation material according to with UL94 :

V0

Automotive :

No

Height :

93.3

Manufacturer :

Wago

EU RoHS :

Compliant

Disconnect Type :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Number of Positions :

6

Stripping Length :

10mm ~ 12mm

Number of Levels :

3

Terminal - Width :

5.2mm

Current - IEC :

28 A

Color :

Gray

Material Flammability Rating :

UL94 V-0

Voltage - UL :

300V

HTS :

8536.90.40.00

PPAP :

No

Voltage - IEC :

500V

Current - UL :

20 A

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Features :

-

Number of Circuits :

3

Product Status :

Active

Termination Style :

Push In, Spring

Package :

Box
