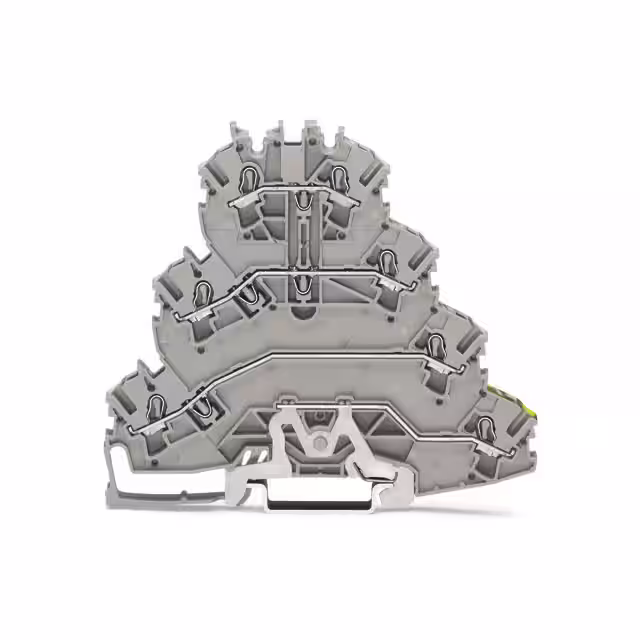

2002-4127

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Disconnect Type :

-

Inflammability class of insulation material according to with UL94 :

V0

ECCN (US) :

EAR99

Width :

5.2

Voltage - UL :

600V

Connectable conductor cross section solid-core :

0.75 - 4

Material Flammability Rating :

UL94 V-0

Number of Circuits :

4

Mounting Type :

DIN Rail

Product Status :

Active

Height :

103.5

RoHS :

yes

Depth :

83.9

Features :

-

Fuse Type :

-

Termination Method :

Spring Clamp

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Stripping Length :

10mm ~ 12mm

Mounting :

T DIN RAIL

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Connectable conductor cross section multi-wired :

0.25 - 2.5

Automotive :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Flammability Rating :

UL94 V-0

Color :

Gray

Series :

TOPJOB®S

Termination Style :

Push In, Spring

Wire Gauge or Range - mm² :

0.25-4mm²

Type :

Ground Terminal Block

Current - UL :

20 A

Manufacturer :

Wago

Length :

103.5

Wire Gauge or Range - AWG :

12-22 AWG

Package :

Box

Number of Contacts :

7

PPAP :

No

Tradename :

CAGE CLAMP?

Voltage - IEC :

800V

Number of Levels :

4; 1 Grounded

Terminal - Width :

5.2mm

Current - IEC :

25 A

EU RoHS :

Compliant

HTS :

8536.90.40.00

Maximum Current Rating (A) :

20

Number of Positions :

7
