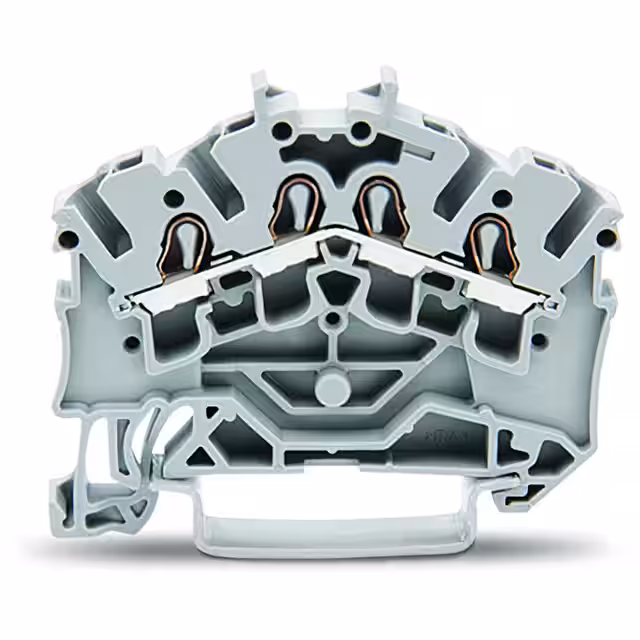

2002-6401

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Fuse Type :

-

Rated current In :

24

Product Status :

Active

Current - UL :

20 A

Wire Gauge or Range - mm² :

0.25-4mm²

Series :

TOPJOB®S

Stripping Length :

10mm ~ 12mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Voltage - IEC :

800V

Type :

Indicator Block

Length :

52

Features :

-

Height :

52.6

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Mounting Type :

DIN Rail

Wire Gauge or Range - AWG :

12-22 AWG

Connectable conductor cross section solid-core :

0.75 - 4

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Terminal - Width :

5.2mm

Depth :

38.9

Material Flammability Rating :

UL94 V-0

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0

Number of Positions :

4

Manufacturer :

Wago

Color :

Gray

Width :

5.2

Current - IEC :

32 A

Package :

Box

Disconnect Type :

-

Connectable conductor cross section multi-wired :

0.25 - 2.5

Voltage - UL :

600V

Termination Style :

Push In, Spring
