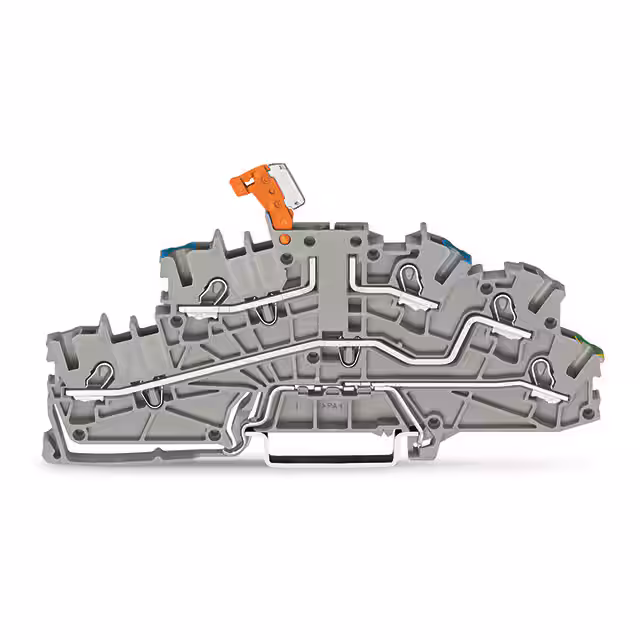

2003-6641

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Width :

5.2

Approvals :

CSA, UL

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

HTS Code :

8536.69.40.40

Number of Levels :

3; 1 Grounded

ECCN Code :

EAR99

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Features :

-

Package :

Box

Number of Positions :

5

RoHS :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Current - IEC :

25 A

Connectable conductor cross section multi-wired :

0.25 - 2.5

Voltage - UL :

300V

Wire Gauge or Range - mm² :

0.25-4mm²

Disconnect Type :

Switch, Knife

Inflammability class of insulation material according to with UL94 :

V0

Product Status :

Active

Fuse Type :

-

Length :

110

Color :

Gray

Depth :

45.2

Type :

Multilevel Installation Block

Series :

TOPJOB®S

Height :

110

Rated current In :

20

Mounting Type :

DIN Rail

Reach Compliance Code :

Unknown

Connectable conductor cross section solid-core :

0.75 - 4

Wire Gauge or Range - AWG :

12-22 AWG

Voltage - IEC :

400V

Stripping Length :

10mm ~ 12mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Current - UL :

20 A

Terminal - Width :

5.2mm

Termination Style :

Push In, Spring

Material Flammability Rating :

UL94 V-0
