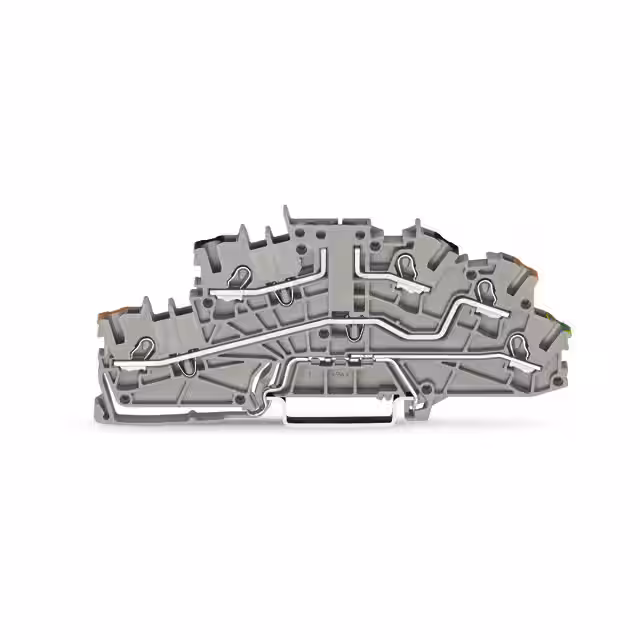

2003-6643

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

HTS Code :

8536.69.40.40

RoHS :

yes

Wire Gauge or Range - AWG :

12-22 AWG

Mounting Type :

DIN Rail

Material Flammability Rating :

UL94 V-0

Termination Style :

Push In, Spring

Current - IEC :

25 A

Length :

110

Features :

-

Terminal - Width :

5.2mm

Depth :

45.2

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Height :

110

Current - UL :

6.3 A

Series :

TOPJOB®S

Disconnect Type :

Open

Number of Positions :

5

Fuse Type :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Product Status :

Active

Reach Compliance Code :

Unknown

Approvals :

UL;CSA

Number of Levels :

3; 1 Grounded

Connectable conductor cross section multi-wired :

0.25 - 2.5

Connectable conductor cross section solid-core :

0.75 - 4

Width :

5.2

Package :

Box

Type :

Multilevel Installation Block

Color :

Gray

Wire Gauge or Range - mm² :

0.25-4mm²

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Material - Insulation :

Polyamide (PA66), Nylon 6/6

ECCN Code :

EAR99

Inflammability class of insulation material according to with UL94 :

V0

Voltage - IEC :

400V

Rated current In :

20

Stripping Length :

10mm ~ 12mm

Voltage - UL :

250V
