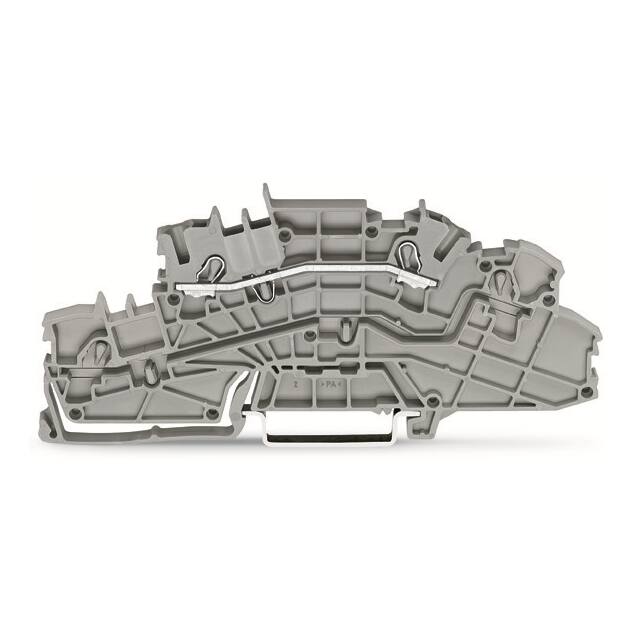

2003-6650

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Reach Compliance Code :

Unknown

Package :

Box

Wire Gauge or Range - mm² :

0.25-4mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section solid-core :

0.75 - 4

Voltage - UL :

300V

Termination Style :

Push In, Spring

Number of Levels :

1

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

HTS Code :

8536.69.40.40

RoHS :

yes

Length :

110

Fuse Type :

-

Rated current In :

20

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Number of Positions :

2

Features :

-

Current - IEC :

28 A

Series :

TOPJOB®S

ECCN Code :

EAR99

Mounting Type :

DIN Rail

Connectable conductor cross section multi-wired :

0.25 - 2.5

Wire Gauge or Range - AWG :

12-22 AWG

Voltage - IEC :

400V

Width :

5.2

Disconnect Type :

-

Product Status :

Active

Height :

110

Material Flammability Rating :

UL94 V-0

Color :

Gray

Terminal - Width :

5.2mm

Current - UL :

20 A

Type :

Multilevel Installation Block

Inflammability class of insulation material according to with UL94 :

V0

Stripping Length :

10mm ~ 12mm

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Approvals :

UL;CSA

Depth :

45.2
