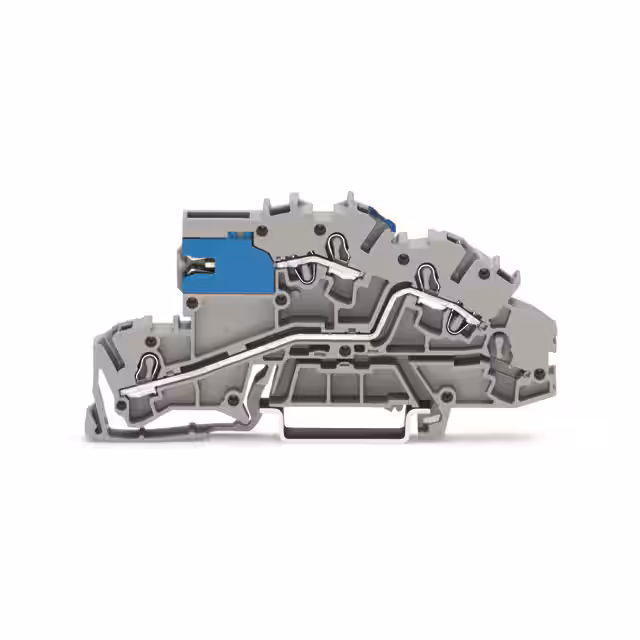

2003-7640

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Positions :

3

Connectable conductor cross section solid-core :

0.75 - 4

Length :

96

Rated current In :

32

Disconnect Type :

-

Maximum Current Rating (A) :

32

Height :

96

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Number of Circuits :

2

Tradename :

CAGE CLAMP?

Mounting Type :

DIN Rail

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Fuse Type :

-

Series :

TOPJOB®S

Color :

Gray

Stripping Length :

10mm ~ 12mm

Mounting :

T DIN RAIL

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Voltage - UL :

-

Width :

5.2

Product Status :

Active

Features :

-

EU RoHS :

Compliant

Wire Gauge or Range - AWG :

12-22 AWG

Automotive :

No

Flammability Rating :

UL94 V-0

Type :

Terminal Block

Material Flammability Rating :

UL94 V-0

RoHS :

yes

Connectable conductor cross section multi-wired :

0.25 - 2.5

Wire Gauge or Range - mm² :

0.25-4mm²

Voltage - IEC :

400V

Terminal - Width :

5.2mm

Depth :

42.3

Number of Contacts :

3

Package :

Box

Termination Method :

Spring Clamp

Inflammability class of insulation material according to with UL94 :

V0

PPAP :

No

ECCN (US) :

EAR99

Termination Style :

Push In, Spring

Current - IEC :

32 A

Number of Levels :

2

Manufacturer :

Wago
