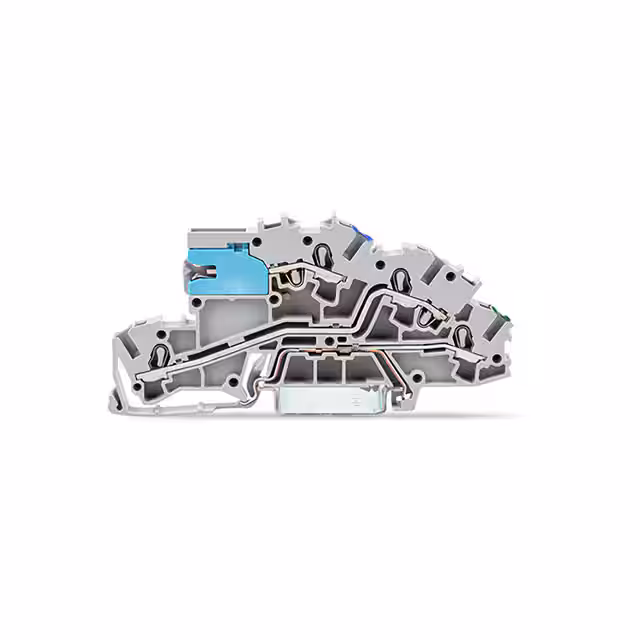

2003-7641

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Nominal voltage :

250V

Number of Positions :

4

Termination Style :

Push In, Spring

Wire Gauge or Range - mm² :

0.25-4mm²

No. of rows :

3

Manufacturer :

Wago

Nominal current - rounded value :

32A

Terminal - Width :

5.2mm

Width :

5.20mm

Disconnect Type :

-

Nominal current :

32A

Weight :

0.02

Flammability Rating :

UL94 V-0

EU RoHS :

Compliant

RoHS :

yes

Connection :

-

Product Status :

Active

Stripping length (max.) :

12mm

Pins per row :

1

PPAP :

No

Number of Levels :

3; 1 Grounded

Cross section (flexible) (max.) :

2.50mm²

AWG max. :

14

Cross section (flexible) (min.) :

0.25mm²

Number of Circuits :

2

Mounting Type :

DIN Rail

Stripping Length :

10mm ~ 12mm

Cross section (inflexible) (min.) :

0.25mm²

Pitch :

5.2mm

Current Rating :

32A

Manufacturer part # :

2003-7641

Nominal current (details) :

32A

Fuse Type :

-

Features :

+ N disconnect slide

Configuration :

NT,L,Terre

Voltage Rating :

400 V

Min. stripping length :

10mm

Type :

Multiclamp Block

Housing Material :

Nylon

Material Flammability Rating :

UL94 V-0

Wire/Cable Gauge :

12 AWG

Clamp width :

5.20mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Termination Method :

Clamp

Current - IEC :

32 A

Voltage - UL :

-

Content :

1pc(s)

AWG (min.) :

22

Cross section (inflexible) (max.) :

4mm²

Color :

Gray

Series :

2003

Package :

Box

Number of Pins :

3

Voltage - IEC :

400V

Wire Gauge or Range - AWG :

12-22 AWG

ECCN (US) :

EAR99

Automotive :

No

Number of Rows :

3
