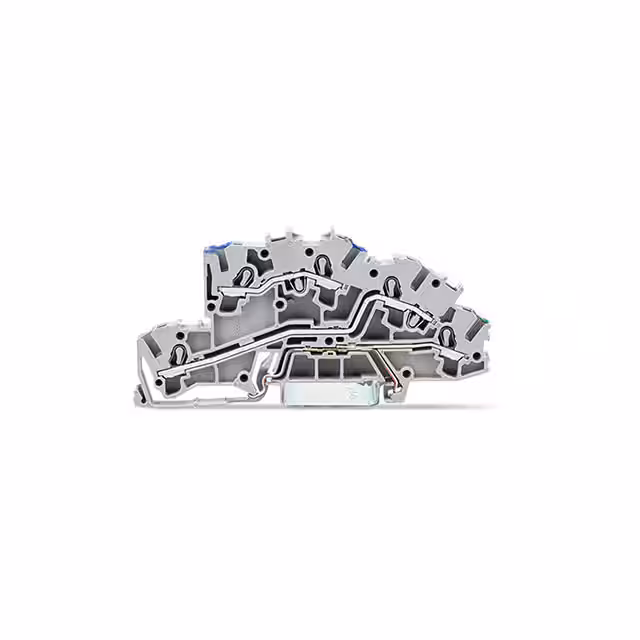

2003-7646

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Levels :

3; 1 Grounded

HTS :

8536.90.40.00

Disconnect Type :

-

Rated current In :

32

Content :

1pc(s)

Inflammability class of insulation material according to with UL94 :

V0

Features :

-

Connectable conductor cross section solid-core :

0.75 - 4

Wire Gauge or Range - mm² :

0.25-4mm²

Configuration :

N,L,Terre

AWG (min.) :

22

Length :

96

Stripping length (max.) :

12mm

Nominal voltage :

250V

Cross section (flexible) (min.) :

0.25mm²

Width :

5.20mm

Wire Gauge or Range - AWG :

12-22 AWG

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Termination Style :

Push In, Spring

ECCN (US) :

EAR99

Depth :

42.3

Number of Circuits :

2

Connectable conductor cross section multi-wired :

0.25 - 2.5

Cross section (flexible) (max.) :

2.50mm²

Connection :

-

Nominal current (details) :

32A

AWG max. :

14

EU RoHS :

Compliant

Voltage - IEC :

400V

No. of rows :

3

PPAP :

No

Voltage - UL :

-

Current - IEC :

32 A

RoHS :

yes

Pins per row :

1

Terminal - Width :

5.2mm

Package :

Box

Automotive :

No

Cross section (inflexible) (min.) :

0.25mm²

Nominal current - rounded value :

32A

Type :

Multiclamp Block

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Product Status :

Active

Min. stripping length :

10mm

Clamp width :

5.20mm

Fuse Type :

-

Weight :

0.02

Series :

TOPJOB®S

Manufacturer :

Wago

Stripping Length :

10mm ~ 12mm

Manufacturer part # :

2003-7646

Cross section (inflexible) (max.) :

4mm²

Nominal current :

32A

Color :

Gray

Height :

96

Number of Positions :

5

Material Flammability Rating :

UL94 V-0

Mounting Type :

DIN Rail
