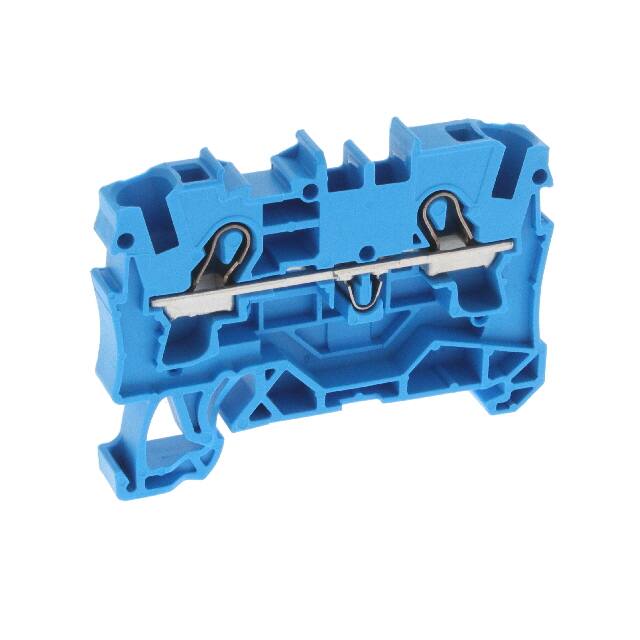

2004-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (flexible) (max.) :

6mm²

AWG max. :

10

Wire Gauge or Range - mm² :

1.5-6mm²

Voltage - IEC :

800V

Height :

52.3

Stripping Length :

11mm ~ 13mm

Color :

Blue

Number of Contacts :

2(POS)

Inflammability class of insulation material according to with UL94 :

V0

Product Height (mm) :

33(mm)

Voltage Rating :

550 V

Nominal current (details) :

32A

Current - IEC :

41 A

Wire Gauge or Range - AWG :

10-14 AWG

Width :

6.20mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Current - UL :

30 A

Contact Pitch (mm) :

Not Required(mm)

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Product Length (mm) :

52.5(mm)

Manufacturer part # :

2004-1204

Stripping length (max.) :

13mm

Features :

-

Gender :

F

Voltage - UL :

600V

Wire Gauge :

10-20(AWG)

Min. stripping length :

11mm

Series :

2004

Pins per row :

2

Termination Method :

Clamp

Length :

52.5

Number of Levels :

Single

AWG (min.) :

20

Housing Color :

Blue

Number of Positions :

2

Packaging :

Box

No. of rows :

1

Base Product Number :

2004-12

Pitch :

6.2mm

Terminal - Width :

6.2mm

Weight :

0.01

Current Rating :

30A

Manufacturer :

Wago

Disconnect Type :

-

Nominal voltage :

800V

Connection :

-

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

-

Package :

Bulk

Product Status :

Active

Cross section (flexible) (min.) :

0.50mm²

RoHS :

yes

Clamp width :

6.20mm

Rated Current :

32A

Type :

Terminal Block

Mounting Style :

T DIN RAIL

Content :

1pc(s)

Rad Hardened :

No

Fuse Type :

-

Connectable conductor cross section multi-wired :

0.5 - 4

Connectable conductor cross section solid-core :

1.6 - 1.6

Current Rating (Max) :

30(A)

Configuration :

N

Operating Voltage (Max) :

600V

Cross section (inflexible) (max.) :

4mm²

Rated current In :

32

Nominal current :

32A

Depth :

32.9

Number of Contact Rows :

2

Rated Voltage :

800V

Cross section (inflexible) (min.) :

0.50mm²

Nominal current - rounded value :

32A

Mounting Type :

DIN Rail
