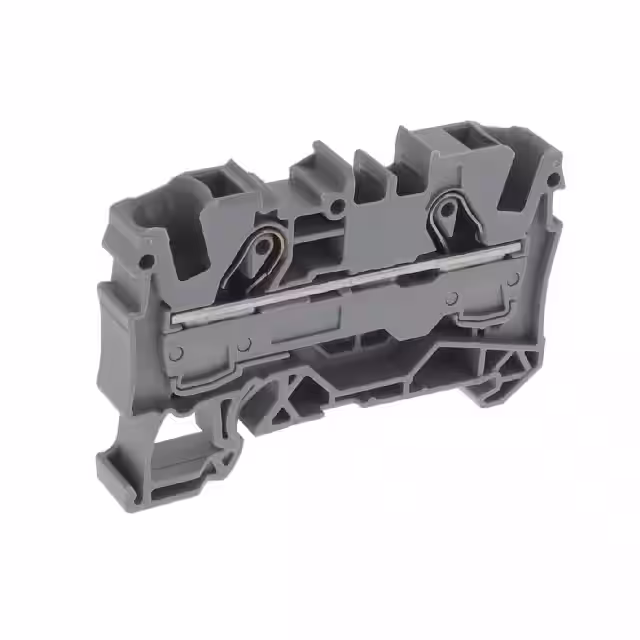

2006-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Fuse Type :

-

Packaging :

Box

Content :

1pc(s)

Length :

57.5

Width :

7.50mm

Material Flammability Rating :

-

Cross section (inflexible) (max.) :

6mm²

Housing Color :

Gray

Features :

-

Nominal voltage :

800V

Voltage - IEC :

800V

AWG (min.) :

20

Wire Gauge :

8-20(AWG)

Mounting Type :

DIN Rail

Terminal - Width :

7.5mm

Package :

Bulk

Rated Voltage :

800V

Manufacturer :

Wago

No. of rows :

1

Base Product Number :

2006-120

Number of Contacts :

2(POS)

Stripping Length :

13mm ~ 15mm

Cross section (inflexible) (min.) :

0.50mm²

Number of Circuits :

1

RoHS :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connection :

-

Depth :

32.9

Weight :

0.01

Number of Positions :

2

Number of Contact Rows :

2

Number of Levels :

1

Height :

57.4

Rated Current :

41A

Contact Pitch (mm) :

Not Required(mm)

Wire Gauge or Range - mm² :

2.5-10mm²

Rated current In :

41

Connectable conductor cross section solid-core :

1 - 10

Color :

Gray

Wire Gauge or Range - AWG :

8-14 AWG

AWG max. :

8

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 10

Manufacturer part # :

2006-1201

Voltage - UL :

600V

Cross section (flexible) (max.) :

10mm²

Stripping length (max.) :

15mm

Nominal current - rounded value :

41A

Mounting Style :

T DIN RAIL

Connectable conductor cross section fine-strand with cable end sleeve :

1.5 - 6

Voltage Rating :

800 V

Current Rating (Max) :

38(A)

Nominal current :

41A

Product Status :

Active

Nominal current (details) :

41A

Inflammability class of insulation material according to with UL94 :

V0

Termination Style :

Push In, Spring

Operating Voltage (Max) :

800V

Current Rating :

41A

Series :

2006

Housing Material :

Polyamide 6/6

Current - IEC :

57 A

Connectable conductor cross section multi-wired :

0.5 - 6

Disconnect Type :

-

Product Height (mm) :

33(mm)

Product Length (mm) :

57.5(mm)

Configuration :

L

Rad Hardened :

No

Clamp width :

7.50mm

Cross section (flexible) (min.) :

0.50mm²

Type :

Terminal Block

Product Depth (mm) :

7.5(mm)

Pins per row :

2

Termination Method :

Push In

Current - UL :

50 A

Min. stripping length :

13mm
