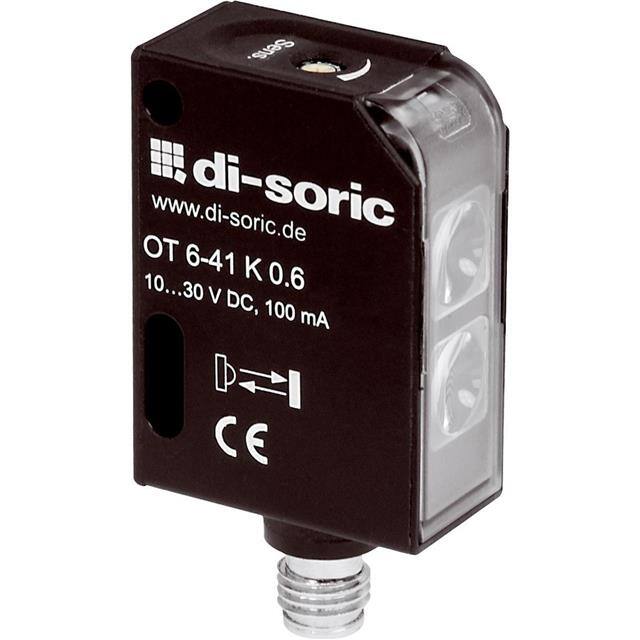

206209

Manufacturer :

di-soric

Product Category :

Optical Sensors - Photoelectric, Industrial

Current - UL :

8 A

Wire Gauge or Range - mm² :

1.5mm²

Contact Mating Finish :

Tin

Operating Temperature :

-40°C ~ 115°C

Type :

Plug, Female Sockets

Package :

Bulk

Number of Levels :

1

Insulation Height :

0.752 (19.10mm)

Screw Size :

M2

Contact Material :

Phosphor Bronze

Product Status :

Active

Mounting Type :

Free Hanging (In-Line)

Color :

Gray

Termination Style :

Screw - Leaf Spring, Wire Guard

Pitch :

0.150 (3.81mm)

Features :

-

Base Product Number :

TS23

Material Flammability Rating :

UL94 V-0

Series :

TS

Current - IEC :

-

Wire Strip Length :

6-7mm

Plug Wire Entry :

270°

Torque - Screw :

0.2 Nm (1.7 Lb-In)

Housing Material :

Thermoplastic

Wire Gauge or Range - AWG :

16-28 AWG

Number of Positions :

23

Header Orientation :

-

Voltage - UL :

300 V

Positions Per Level :

23

Contact Tail Length :

-

Ingress Protection :

-
