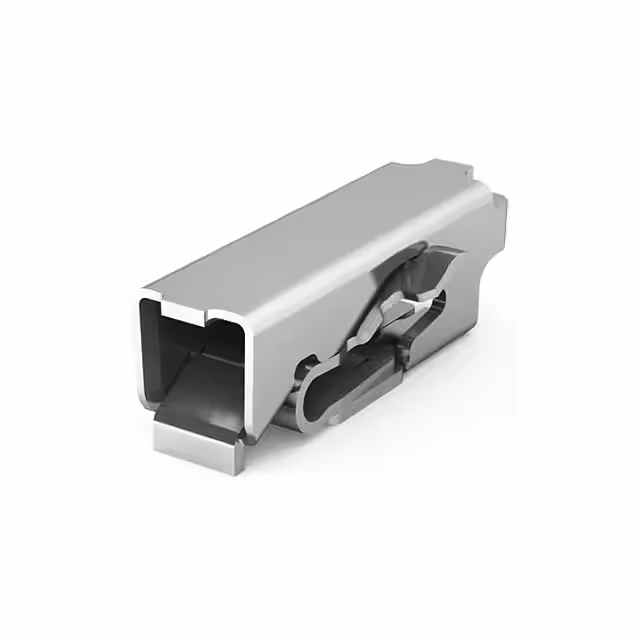

2065-101/998-403

Manufacturer :

WAGO

Product Category :

Wire to Board

Length :

8

Inflammability class of insulation material according to with UL94 :

V0

Number of Rows :

1

Connectable conductor cross section solid-core :

0.2 - 0.75

Number of Circuits :

1

Type :

PC Terminal Block

Minimum Operating Temperature (°C) :

-60

Rad Hardened :

No

Maximum Current Rating (A) :

9

Automotive :

No

Maximum Operating Temperature (°C) :

120

Clamp Material - Plating :

Steel - Nickel Plated

Packaging :

Box

Wire Gauge :

18-24(AWG)

Transparent :

No

Operating Voltage (Max) :

320V

Positions Per Level :

1

Screw Thread :

-

Current Rating (Max) :

9(A)

PPAP :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 0.75

Termination Method :

Solder

Series :

-

Connection Type :

Spring Clamp

Number of Contact Rows :

1

Width :

2.3

Depth :

2.7

Rated Current :

9A

Housing Color :

Silver

Approvals :

cURus

Number of Poles :

1

Wire Termination :

Screwless - Push Button Clamp

Mounting Type :

PCB Mount

Voltage :

600 V

ECCN (US) :

EAR99

Mounting Style :

Surface Mount

Rated Voltage :

250V

Package :

Tape and Reel (TR)

Screw Material - Plating :

-

Temperature Range :

-76 to 221 Degrees F

Number of Contacts :

1

Number of Levels :

1

HTS :

8536.90.40.00

Features :

-

Operating Temperature :

-60°C ~ 120°C

Body Orientation :

RIGHT ANGLE

Manufacturer :

Wago

Current :

9 A

Mounting :

Surface Mount

Height :

8

Product Status :

Active

Torque - Screw :

-

Rated current In :

9

Color :

METALLIC

RoHS :

yes

EU RoHS :

Compliant

Maximum Voltage Rating :

320V

Mating Orientation :

Horizontal with Board

Pitch :

-

Housing Material :

Polyamide 6/6

Contact Material - Plating :

Copper Alloy - Tin Plated
