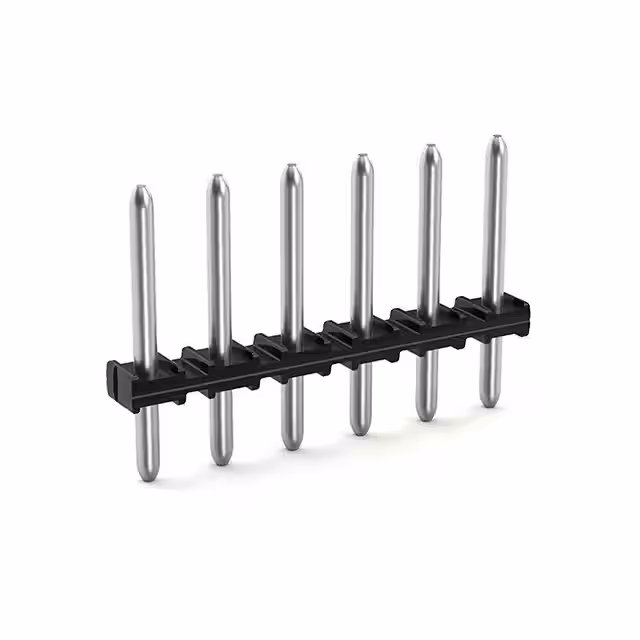

2091-1705

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

With wire protection :

yes

Insulation Height :

0.067 (1.70mm)

Connection Type :

Spring Clamp

Type of electric connection :

Spring clamp connection

Approvals :

CSA;UR

Connectable conductor cross section solid-core :

0.5 - 2.5

Ambient temperature :

-40 - 125

Number of Poles :

5

Pitch :

0.138 (3.50mm)

Plug Wire Entry :

-

Contact Tail Length :

0.142 (3.60mm)

Mounting Type :

PCB Mount

RoHS :

No

Wire Gauge or Range - mm² :

-

Series :

picoMAX® 3.5

Positions Per Level :

5

Material connector insert :

Thermoplastic

Housing Material :

Polyphthalamide (PPA), Glass Filled

Current - IEC :

10A

Rated current In :

16

Product Status :

Active

Connectable conductor cross section multi-wired :

0.5 - 2.5

Pollution degree :

3

Manufacturer :

Wago

Color :

Black

Features :

-

Header Orientation :

Vertical

Composition :

Polyphthalamide

Over voltage category :

III

Operating Temperature :

-60°C ~ 100°C

Termination Style :

Solder

Material contact :

Brass

Screw Size :

-

Type :

Header, Male Pins, Unshrouded

Contact Material :

Electrolytic Copper

Rated surge voltage :

6

Number of Levels :

1

Inflammability class of insulation material according to with UL94 :

V2

Temperature Range :

-76 to 212 Degrees F

Wire Gauge or Range - AWG :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Number of Positions :

5

Material of contact surface :

Silver

Contact insert without contacts :

No

Torque - Screw :

-

With protective conductor :

yes

Material Flammability Rating :

UL94 V-0

Voltage - IEC :

320 V

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Ingress Protection :

-

Package :

Bag

Wire Strip Length :

-

Contact Mating Finish :

Tin

Diameter plug-in contact :

2.5
