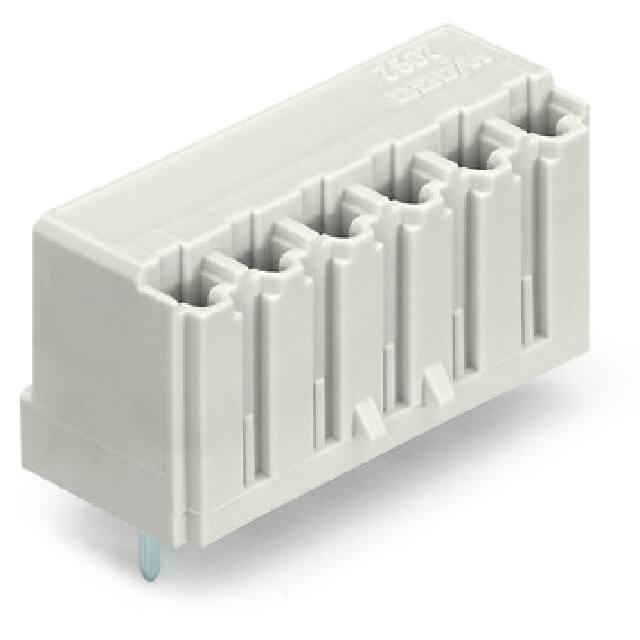

2092-1302

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

RoHS :

No

Contact Material :

Electrolytic Copper

Type of electric connection :

Soldering connection

Plug Wire Entry :

-

Over voltage category :

III

Color :

Gray

Contact Tail Length :

0.094 (2.40mm)

Wire Strip Length :

9-10mm

Current - IEC :

16A

Packaging type :

Other

Number of Levels :

1

Screw Size :

-

Current - UL :

15 A

Rated current In :

16

Wire Gauge or Range - AWG :

12-24 AWG

Torque - Screw :

-

Wire Gauge or Range - mm² :

0.2-2.5mm²

Pitch :

0.197 (5.00mm)

Number of Poles :

2

Approvals :

CSA;UR;UL

Number of Positions :

2

Housing Material :

Polyphthalamide (PPA), Glass Filled

Mounting Type :

PCB Mount

Material quality :

Polyamide (PA)

Voltage - UL :

300 V

Contact Mating Finish :

Tin

Material Flammability Rating :

UL94 V-0

Inflammability class of insulation material according to with UL94 :

V0

Rated surge voltage :

4

Termination Style :

Solder

Type of fastening :

Screw hole

Type :

Header, Female Sockets

Material :

Plastic

Manufacturer :

Wago

Temperature Range :

-76 to 212 Degrees F

Operating Temperature :

-60°C ~ 100°C

Material of contact surface :

Tin

Series :

picoMAX® 5.0

Header Orientation :

Vertical

Positions Per Level :

2

Features :

-

Insulation Height :

0.638 (16.20mm)

Ingress Protection :

-

Composition :

Polyphthalamide

Product Status :

Active

Contact Plating :

Tin

Package :

Box

Voltage - IEC :

630 V

Pollution degree :

2
