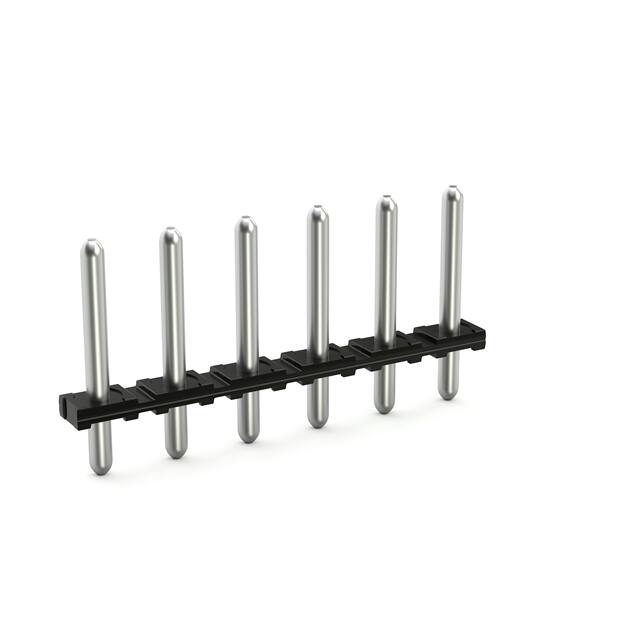

2092-1704

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Plug Wire Entry :

-

Wire Gauge or Range - mm² :

-

Type :

Header, Male Pins, Unshrouded

Product Status :

Active

Current - IEC :

16A

Torque - Screw :

-

Series :

picoMAX® 5.0

Wire Strip Length :

-

Contact Tail Length :

0.142 (3.60mm)

Package :

Bag

Positions Per Level :

4

Ingress Protection :

-

Insulation Height :

0.055 (1.40mm)

Contact Material :

Electrolytic Copper

Termination Style :

Solder

Wire Gauge or Range - AWG :

-

Operating Temperature :

-60°C ~ 100°C

Approvals :

CSA;UL

Number of Positions :

4

RoHS :

Non-Compliant

Features :

-

Number of Levels :

1

Color :

Black

Contact Mating Finish :

Tin

Pin Length :

3.6 MilliMeters

Composition :

Polyphthalamide

Screw Size :

-

Voltage - IEC :

630 V

Pitch :

0.197 (5.00mm)

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyphthalamide (PPA), Glass Filled

Manufacturer :

Wago

Number of Poles :

4

Mounting Type :

PCB Mount

Header Orientation :

Vertical
