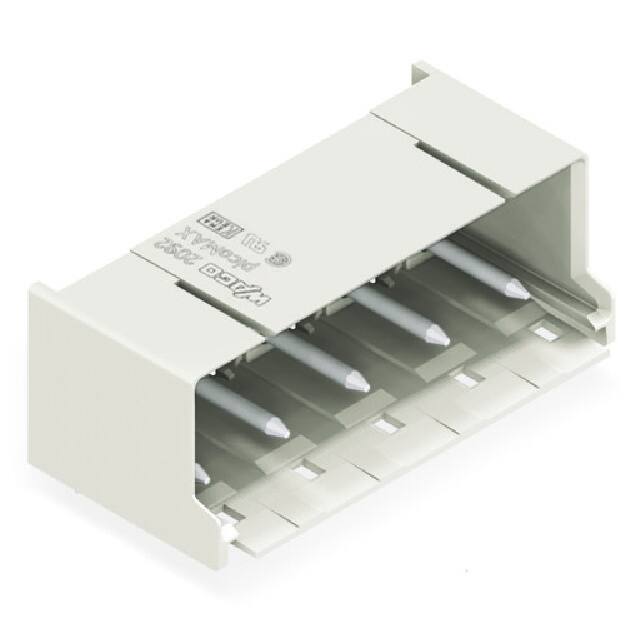

2092-3422

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Strip Length :

-

Header Orientation :

90°, Right Angle

Over voltage category :

III

Voltage - IEC :

400 V

Housing Material :

Polyphthalamide (PPA), Glass Filled

Termination Style :

Solder

Current - IEC :

16A

Contact Tail Length :

0.142 (3.60mm)

Approvals :

CB;CSA;cURus

Manufacturer :

Wago

Package :

Box

Positions Per Level :

2

Automotive :

No

Torque - Screw :

-

Number of Positions :

2

Number of Levels :

1

Rated surge voltage :

6

Plug Wire Entry :

-

Series :

picoMAX® 7.5

Wire Gauge or Range - mm² :

-

Rated current In :

16

Type of electric connection :

Soldering connection

Product Status :

Active

Ingress Protection :

-

EU RoHS :

Compliant

PPAP :

No

ECCN (US) :

EAR99

Current - UL :

15 A

Screw Size :

-

Voltage - UL :

300 V

Voltage :

300 Volts

Pollution degree :

2

Contact Finish :

Tin

Temperature :

-60 to 100 Degrees C

Features :

-

Inflammability class of insulation material according to with UL94 :

V0

Number of Contacts :

2 Pole

Pitch :

0.295 (7.50mm)

Type of fastening :

Solder

Operating Temperature :

-60°C ~ 100°C

Contact Material :

Electrolytic Copper

Type :

Header, Male Pins, Shrouded (4 Side)

Wire Gauge or Range - AWG :

-

Material Flammability Rating :

UL94 V-0

Color :

Gray

Packaging type :

Other

Current :

15 Amps

HTS :

8536.69.80.00

Insulation Height :

0.567 (14.40mm)

Mounting Type :

Through Hole

Material of contact surface :

Tin

Contact Mating Finish :

Tin
