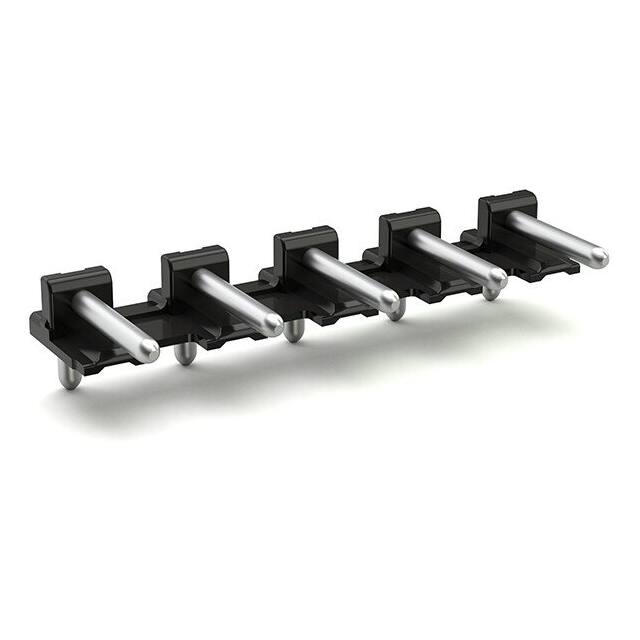

2092-3723

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Operating Temperature :

-60°C ~ 100°C

Product Status :

Active

Current - IEC :

16A

Torque - Screw :

-

Color :

Black

Voltage - IEC :

1 kV

Screw Size :

-

Termination Style :

Solder

Contact Mating Finish :

Tin

Over voltage category :

III

Positions Per Level :

3

Type :

Header, Male Pins, Partial Shroud

Features :

-

Header Orientation :

90°, Right Angle

Rated surge voltage :

6

Material of contact surface :

Tin

RoHS :

yes

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - AWG :

-

Manufacturer :

Wago

Number of Poles :

3

Contact Material :

Electrolytic Copper

Wire Gauge or Range - mm² :

-

Rated current In :

16

Approvals :

CSA;UL

Series :

picoMAX® 7.5

Pitch :

0.295 (7.50mm)

Wire Strip Length :

-

Plug Wire Entry :

-

Contact Tail Length :

0.142 (3.60mm)

Insulation Height :

0.295 (7.50mm)

Composition :

Polyphthalamide

Mounting Type :

PCB Mount

Package :

Bag

Type of fastening :

Solder

Type of electric connection :

Soldering connection

Number of Positions :

3

Pollution degree :

2

Ingress Protection :

-

Pin Length :

3.6 MilliMeters

Housing Material :

Polyphthalamide (PPA), Glass Filled
